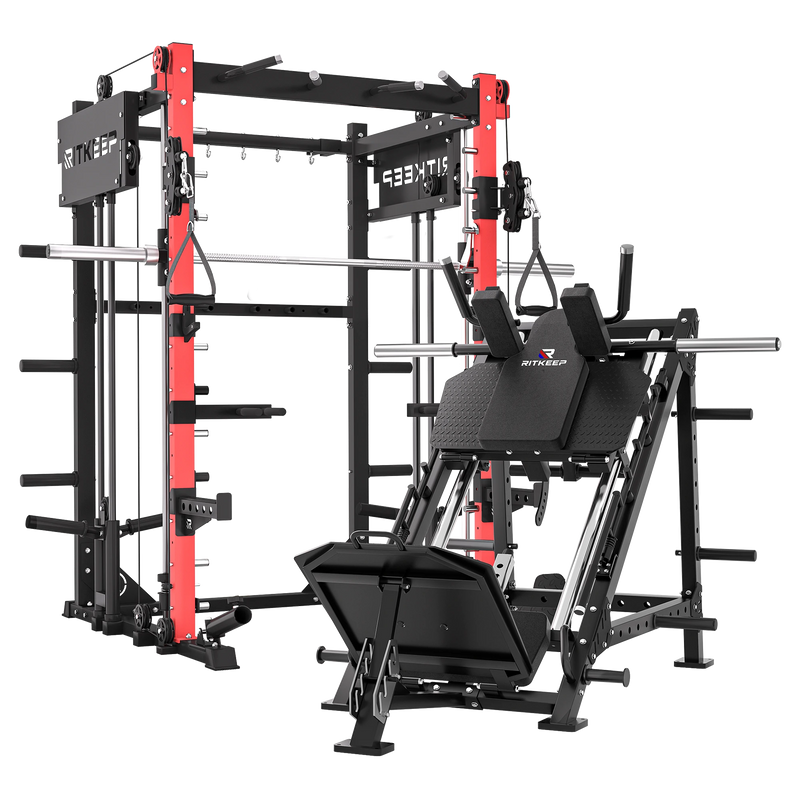

RitKeep PMAX 4750 & A10 Full-Body Workout Package
- All-in-One Machine with Dual Pulley System
- 1:1 & 2:1 Pulley Ratios for Versatile Training
- 50×70 mm Steel Frame, Support up to 900 KG
- Supports Hack Squat, Leg Press & Calf Raise
- Dual-Column Design with 5 Lockout Positions
- Adjustable Footplates Fit All Training Styles
- Red - A$3,648.00
- Black - A$3,648.00
VIDEO
Video Guide
ACCESSORIES
DESCRIPTION
FULL-BODY & LEG STRENGTH PACKAGE INCLUDED
|

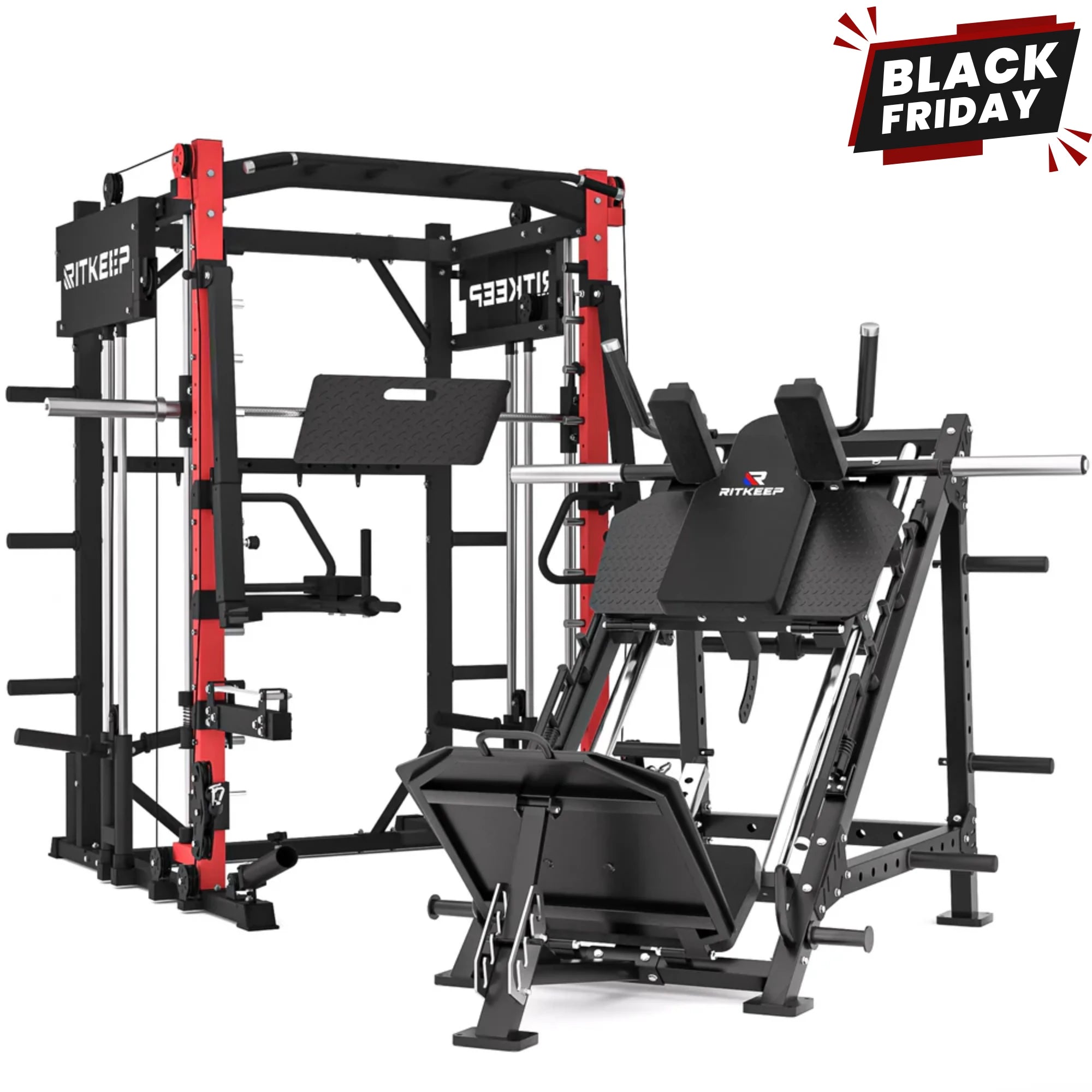

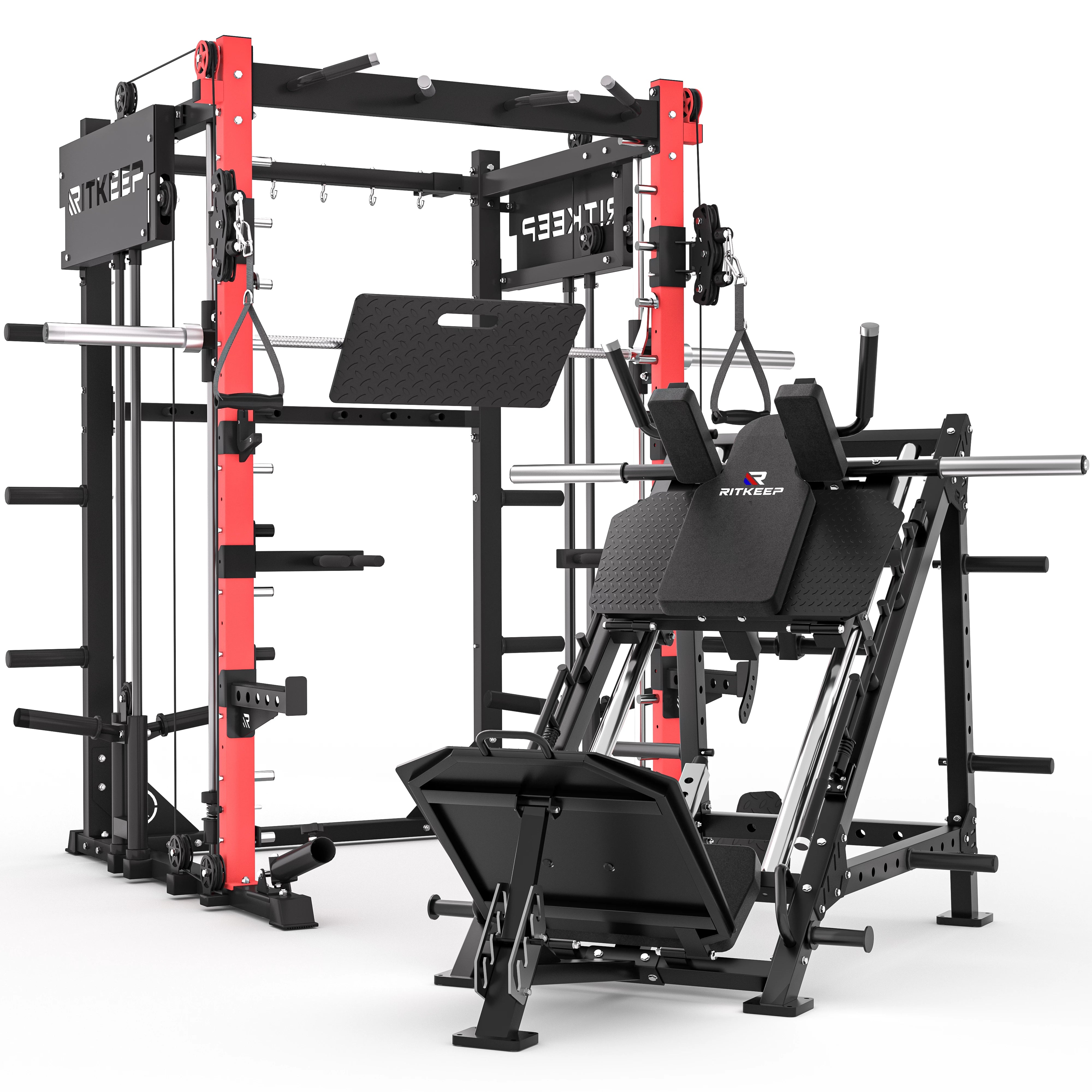

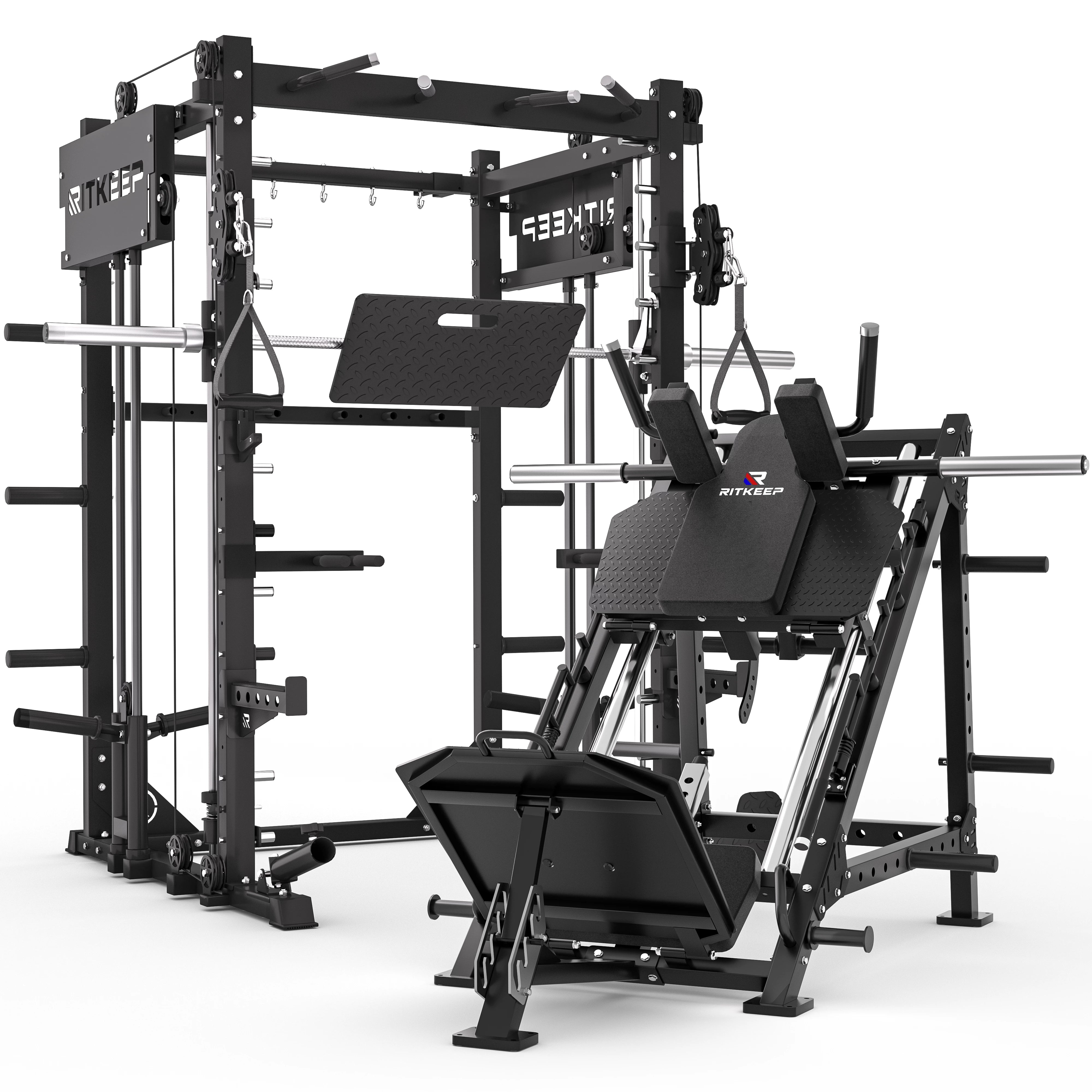

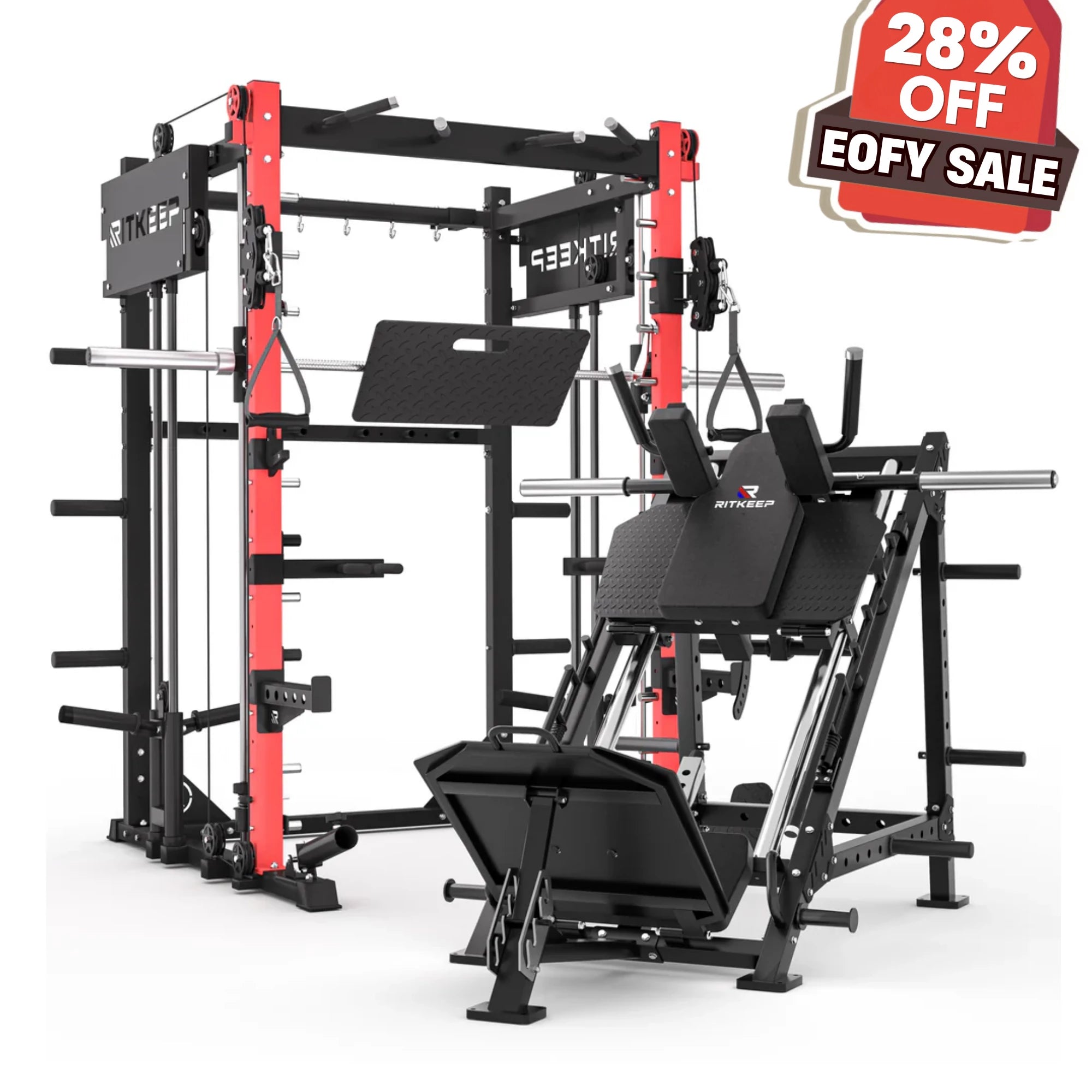

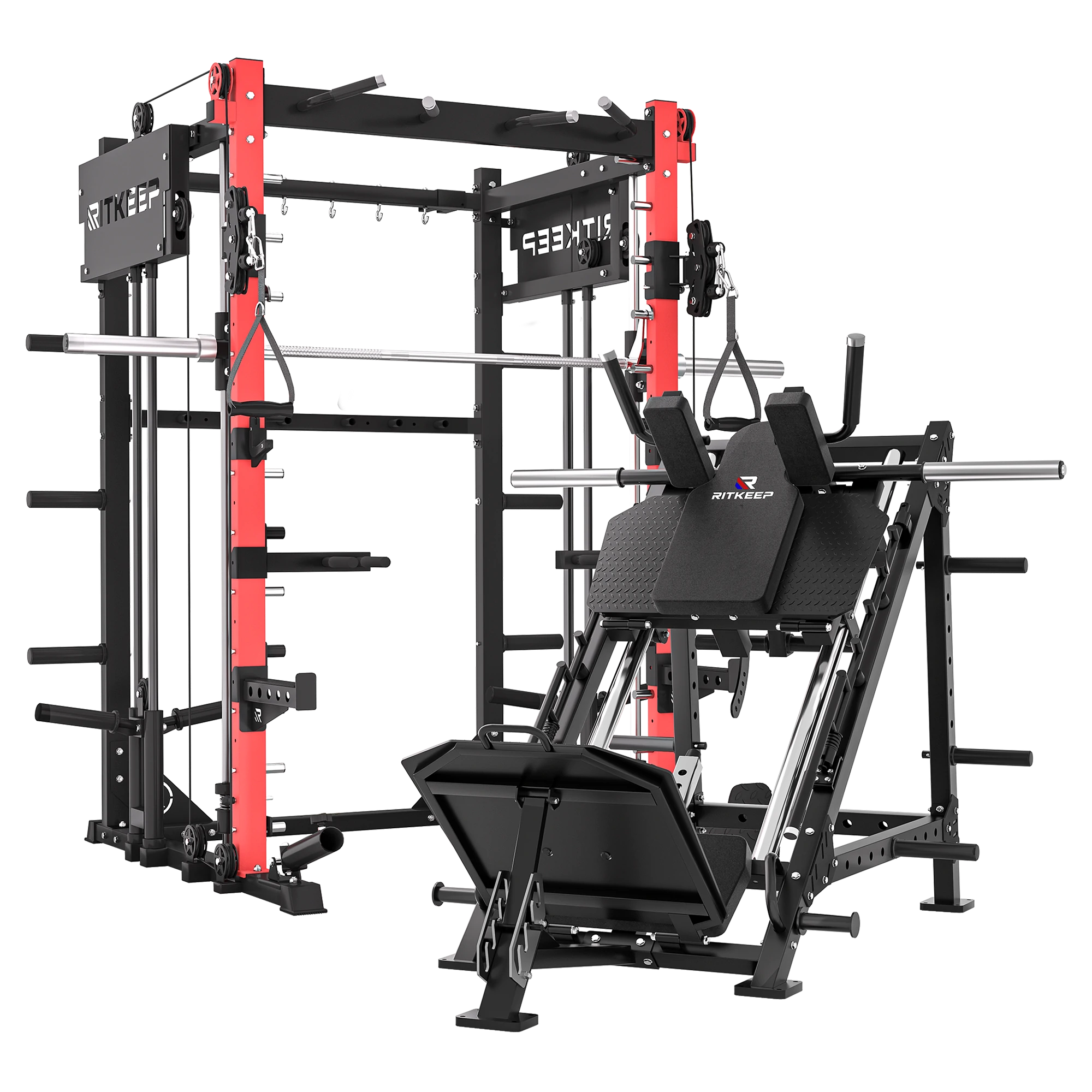

Take your training to the next level with this powerhouse combo — the RitKeep PMAX 4750 Smith Machine and the Thunderbolt A10 Leg Press Hack Squat Machine. This all-in-one home gym package is designed to give you a complete strength-building experience from head to toe. >>PMAX 4750 SMITH EXERCISE MACHINE
PMAX 4750 SPECS
>> THUNDERBOLT A10 LEG PRESS & HACK SQUAT MACHINE
THUNDERBOLT A10 SPECS
|
SPECIFICATION
Dimensions & Footprint
| Rack Weight | 150kg |
| Rack Height | 211cm (Allow at least 15cm overhead clearance for pull-ups) |
| Rack Width (Including Smith Bar) | 201.9cm (Allow 50cm of side clearance to load plates comfortably) |
| Rack Depth (Including Attachments) | 172cm |
| Inside Width | 110cm |
| Inside Depth | 127cm |
| Smith Bar Weight | 15kg |
| Smith Bar Length | 201.9cm |
| Smith Bar Sleeve Length | 32cm |
Cable Pulley
| Pulley Ratio | 2:1 and 1:1 |
| Pulleys | Plastic |
| Cable | 4-Layer Encased Steel |
| Cable Pulley Rotation | 200° |
| Cable Head Rotation | 360° |
| Vertical Adjustment | 11 Levels |
Max Load Capacity
| Machine | 900kg |
| Frame | 450kg |
| Cable Pulley Mechanism | 200kg |
| J-Hooks | 590kg |
| Safety Spotter Arms | 450kg |
| Pull Up Bar | 225kg |
| Dip Station | 205kg |
| Lat Pulldown Bar | 200kg |
| Straight Bar | 140kg |
| Landmine & T-Bar | 280kg |
Frame
| Steel Type | 14 Gauge Alloy Steel |
| Square Tube | 50 mm x 70 mm |
| Metal Thickness | 2 mm |
| Coating | Powder Coated |
📖 PMAX-4750 Installation Manual: Download
▶ PMAX-4750 Installation Video:Watch
Dimensions & Footprint
| Machine Weight | 170 KG |
| Machine Width | 152cm (Including Weight Post) |
| Machine Depth | 233cm |
| Machine Height | 152cm |
| Lower Foot Plate Dimensions (W x L) | 70cm x 62cm |
| Upper Foot Plate Dimensions (W x L) | 76cm x 48cm |
| Lower Foot Plate Adjustable Positions | 4 (88°, 95°, 100°, 105°) |
| Upper Foot Plate Adjustable Positions | 6 (180°, 111°, 104°, 97°, 90°, 83° ) |
| Back Pad Dimensions (W x L) | 35cm x 75cm |
| Seat Pad Dimensions (W x L) | 52 cm x 30 cm |
| Shoulder Pad Dimensions (W x L) | 11cm x 33cm |
| Weight Post | 4 |
| Weight Post Length | 32cm |
| Storage Post | 6 |
| Storage Post Length | 20cm |
| Weight & Storage Post Diameger | 20mm & 50mm |
Weight Capacity
| Overall Capacity | 1000 KG |
| Sled Weight | 22.7 KG |
| Weight Loading Capacity | 450 KG (4 Holders) |
| Weight Storage Capacity | 550 KG (6 Holders) |
| User Weight | 120 KG |
Meterial
| Finish | Powder-Coated |
| Frame Material | Steel |
| Steel Type | 12 Gauge |
| Square Tube | 50mm x 70mm |
| Slide Mechanism | Nylon Roller |
📖 Thunderbolt A10 Installation Manual: Download
▶️ Thunderbolt A10 Installation video: Watch
SHIPPING & RETURNS
Shipping Time
Orders will be processed and shipped within 3-5 working days. The delivery timeframe would be 5-7 days.
We cannot guarantee delivery time under special circumstances, such as natural disasters, government actions, social anomalies, etc. If there are special circumstances, we will inform you by email.
*Things to note:
- Delivery days do not include the date of dispatch (i.e. Dispatch to ACT on Monday, count 5-7 days from Tuesday)
- Metropolitan areas may have quicker delivery times
- Orders cannot be delivered to P.O. Boxes / Parcel Lockers
- Contact number is required for all deliveries (preferably mobile number)
Shipping Fee
- We provide a Standard Delivery option at a fee of AU$10.99.
- Free Shipping Available in Certain Metro Areas – Shipped from Sydney.
*Please note: If there is a delay in logistics, please contact us in time by email: service@ritkeep.au, please include your order number in the email.
Free Metro Shipping
Free shipping to most metropolitan areas. Shipping calculated at checkout.
Dispatch in batches.
We will dispatch your items immediately when they become available, so you may get several shipments from us. You only pay for shipping once and there are no additional charges.
Collections
You can pick up your order directly from our Sydney warehouse. Please contact our Service Team service@ritkeep.au for more details.
Customs, Duties, and Taxes
RitKeep includes the customs and taxes applied to your order.
Undeliverable Packages
In case a package delivery is unsuccessful due to incorrect address information or other factors, we will make every effort to contact you and resolve the situation. Please note that there may be additional shipping fees for reshipment.
How To Track Your Order
You will receive an email with a tracking number to track your order once your order has shipped. You can use the link we sent to monitor your shipment's status and estimated delivery date.
*Please allow up to 48 hours for the tracking portal to update.
Ultimate All-In-One Weight-Training Hub
The RitKeep PMAX-4750 Smith Machine is an all-in-one weight-training apparatus featuring a fixed path barbell, safety catches, and spring-loaded stops for unmatched security during workouts. It offers over 100 exercise options, catering to various fitness goals.
The machine includes independent dual pulleys with both a 2:1 and 1:1 ratio, allowing smooth, responsive motion and extended travel for up to three users simultaneously. Additionally, with 10 adjustable positions for the pulleys and Smith System, it accommodates users of different heights, making it ideal for the entire household.
Versatile Pulley Ratios for Precision Training
PMAX-4750 Smith machine features two pulley ratios—2:1 and 1:1—offering flexible control over your workout intensity. The 2:1 ratio reduces the effort required, cutting the perceived weight in half. This setting is perfect for endurance training and high-repetition exercises, allowing for more controlled movements and gradual strength building.
For those seeking maximum resistance, the 1:1 ratio offers direct, true-to-weight resistance, matching the selected load exactly. Ideal for strength training, it delivers a more challenging workout to help you build muscle and increase power. Whether you’re focusing on controlled reps or pushing your limits, this dual-ratio system adapts to all fitness goals.
Effortless Transition Between Training Modes
Designed with comfortable, anti-slip padding, this leg press machine lets you switch between two workout setups in seconds. Simply flip the back pad and adjust the diamond-plated foot plates with a quick pull of the pop-pin to move seamlessly between leg presses and hack squats. This versatile machine engages your quads, hamstrings, glutes, and calves, all while minimizing strain on your lower back—delivering a safe, efficient, and smooth workout experience.
24 Adjustable Angles for Customized Comfort
The foot pedals are designed with multiple adjustable angles to ensure a personalized and ergonomic workout experience. The hack squat pedal offers four adjustable angles, while the leg press pedal provides six, allowing for precise adjustments that enhance comfort, balance, and performance during every session.
Pull-Up Bar
Cable Pulley System
Dip Bar With Arm Pads
Dual Spotter Arms
Anti-Slip Foam Pads
Smooth Nylon Roller
Upper & Lower Handles
Resistant Band Pegs
Elevate Your Workouts with All-Inclusive Accessories
Designed for total strength and versatility, this multi-functional power rack offers an impressive range of attachments to support three key training methods: cable training, free weight workouts, and resistance exercises. The J-Hook and Safety Bar provide a secure base for heavy lifting, while the Dip Bar strengthens the upper body. The Landmine attachment enables dynamic rotational exercises, and the Straight Bar, and Lat Pulldown Bar enhance your cable workouts for rows and pull-downs. Additionally, the adjustable resistance bands boosts muscle engagement, ensuring a balanced, full-body fitness routine.
