DESCRIPTION

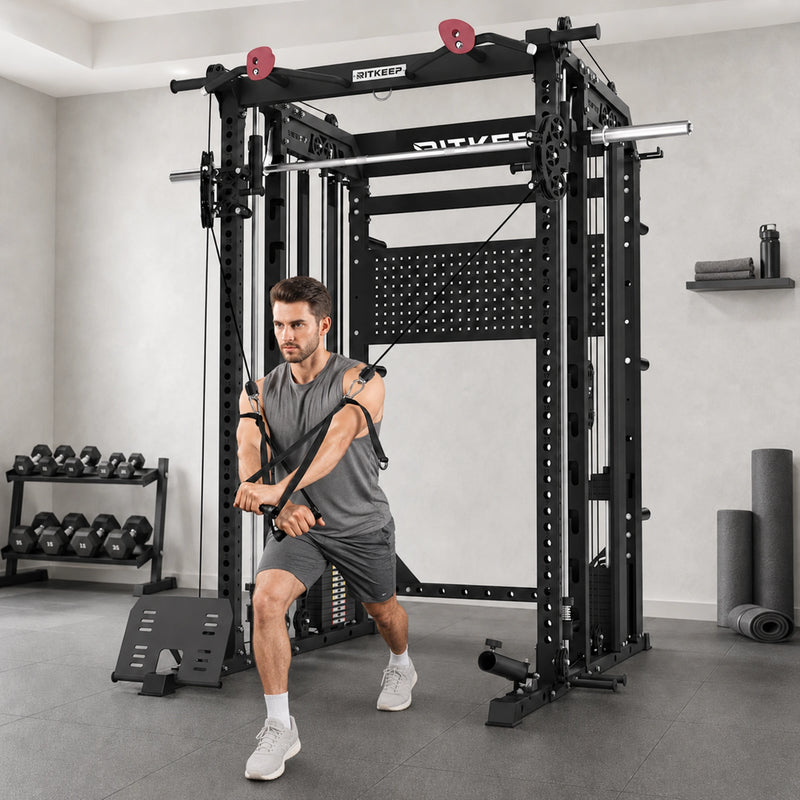

The NIMITZ N1 combines Smith Machine, Power Rack, Cable Crossover, Lat Pulldown, Low Row, and Pull-Up Station. It features 140 KG steel weight stacks, switchable 1:1 & 2:1 pulley ratios, and a counterbalanced Smith bar starting at just 1.5 KG of resistance. An ideal choice for beginners and experienced lifters looking to build a home gym.
DUAL INDEPENDENT PULLEY SYSTEM
- 2 x70 KG Steel Stacks: Quickly adjust resistance in 10 lb increments using the selector pin, without loading weight plates. Solid steel plates provide consistent weight and resist cracking and wear.
- Switchable 1:1 & 2:1 Ratios: Switch between 1:1 and 2:1 pulley ratios for different exercises. Use 1:1 for heavier lat pulldowns and seated rows, or 2:1 for lighter resistance and longer cable travel during chest flyes and lateral raises.
- Plate-Loaded Design: Add weight plates to the built-in weight stacks to increase cable loading capacity up to 170 KG per side, giving you more resistance for heavier workouts.
COUNTERBALANCED SMITH SYSTEM
- Start as Light as 1.5 KG: Connect the Smith bar to the weight stacks to counterbalance its weight, reducing the starting resistance to just 1.5 KG. Ideal for beginners, warm-ups, and practicing proper lifting form.
- Safer Solo Training: With 12 lockout positions, you can lock the Smith bar in place if you can't finish a lift, reducing the need for a spotter.
- Smooth, Uninterrupted Lifts: 8 linear bearings reduce friction, allowing the Smith bar to move smoothly during both lifting and lowering for a more consistent feel throughout each rep.
SPECIFICATION
Dimensions & Footprint
| Rack Weight | 327 kg |
| Rack Height | 215 cm |
| Rack Width (Including Smith Bar) | 202 cm |
| Rack Depth (Including Attachments) | 173 cm |
| Inside Width | 111 cm |
| Inside Depth | 153 cm |
| Smith Bar Weight | 15 kg |
| Smith Bar Length | 202 cm |
| Smith Bar Sleeve Length | 29 cm |
Cable Pulley
| Weight Stack | 2 × 70 kg Steel Stacks |
| Pulley Ratio | 1:1 & 2:1 |
| Pulley Material | Nylon |
| Cable Construction | 4-Layer Encased Steel |
| Cable Pulley Rotation | 200° |
| Cable Head Rotation | 360° |
| Vertical Adjustment | 33 Levels |
Max Load Capacity
| Machine | 1,200 kg |
| Cable Pulley | 680 kg |
| J-Hooks | 720 kg |
| Safety Arms | 550 kg |
| Pull-Up Bar | 340 kg |
| Dip Station | 200 kg |
| Lat Pulldown Bar | 136 kg |
| Straight Bar | 136 kg |
| Landmine & T-Bar | 270 kg |
Frame
| Steel Type | 13-Gauge Steel |
| Square Tube | 50 × 70 mm |
| Metal Thickness | 2.5 mm |
| Coating | Powder-Coated |

Counterbalanced Bar Starting from 1.5 KG
The counterbalanced Smith system uses cables to connect the Smith bar to weight stacks, reducing its starting weight from 15 KG to just 1.5 KG.
Start from 10.5 kg with 1 plate per side.
Start from 6 kg with 2 plate per side.
Start from 1.5 kg with 3 plate per side.

Dual Ratios Pulley System
Switch between 1:1 and 2:1 pulley ratios without any mechanical adjustments. Pull one cable for 2:1 resistance, ideal for chest flyes and lateral raises with lighter weight and longer cable travel. Pull both cables for 1:1 resistance, delivering heavier resistance for lat pulldowns and seated rows.

Integrated, Space-Saving Storage
Save floor space with 6 weight plate holders, 2 barbell holders, a rear pegboard, and dedicated attachment storage built into the rack.

Multi-grip pull-up bar offers various hand positions for various exercises.

Store the Smith bar at the top of the frame to keep your workout area clear.

Use lower pegs to add squat resistance and upper pegs for assisted pull-ups.

3 footplate angles and a 29 × 40 cm surface for stable, comfortable seated rows.

13-gauge steel uprights keep the rack stable during heavy squats and bench presses.
Frequently Asked Questions
What are the main highlights of the Nimitz N1?
The Nimitz N1 stands out with a counterbalanced Smith system that reduces the Smith bar's starting weight to just 1.5 kg. It also features a cable system with switchable 1:1 and 2:1 ratios, dual 70 kg steel weight stacks, 11+ accessories, and an integrated storage system to keep your workout space organized.
What are the main differences between the Classic and Pro versions?

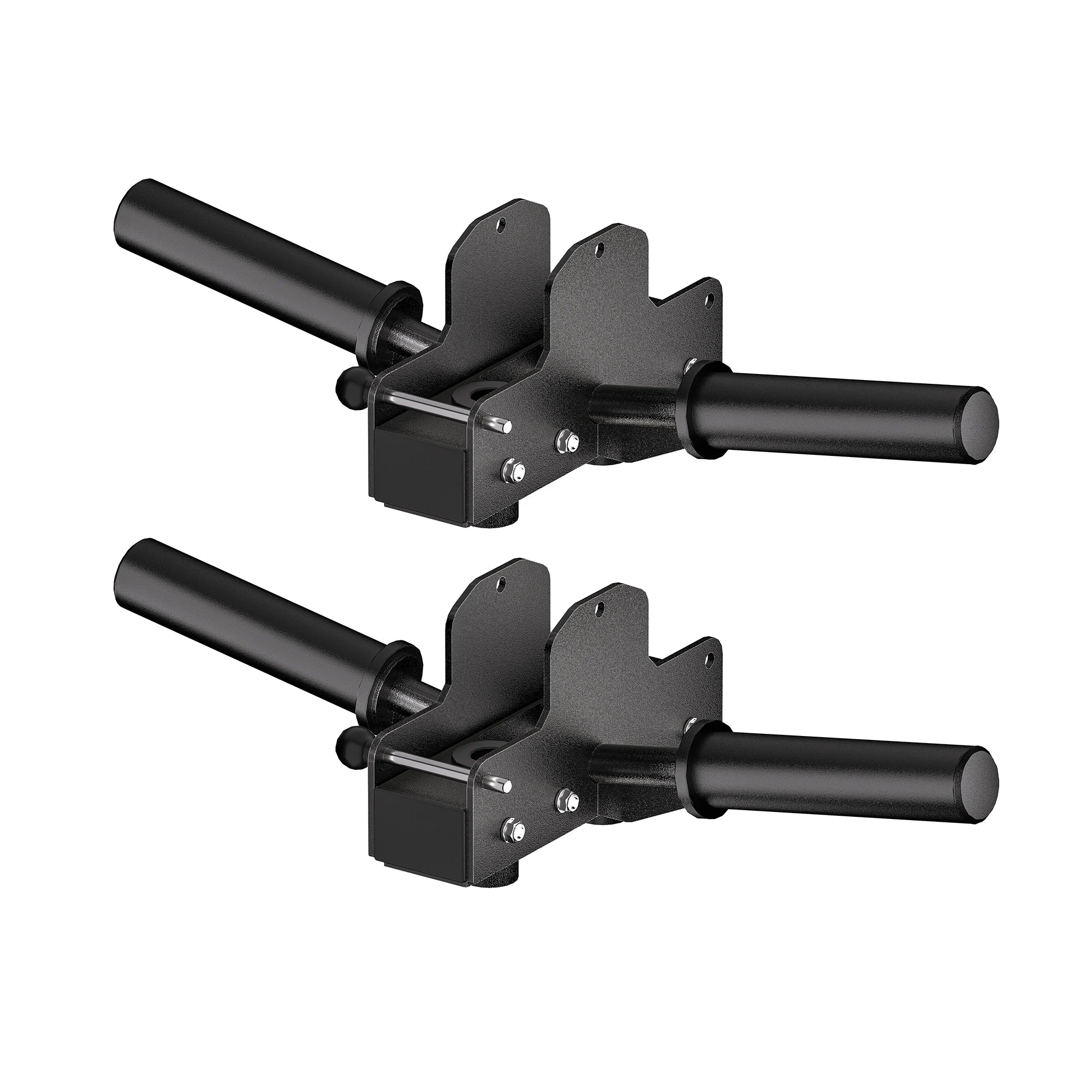

The only difference is the Weight Extender. The Nimitz N1 Pro includes this attachment, allowing you to add weight plates for greater resistance during cable exercises.
How heavy is the built-in weight stack?
The Nimitz N1 features dual 70 kg weight stacks, providing 140 kg of total weight. Each side includes 15 weight plates at 4.5 kg each for quick and easy resistance adjustments.
What exercises does the Nimitz N1 target?
The Nimitz N1 supports full-body strength training, including squats, deadlifts, bench presses, shoulder presses, hip thrusts, lat pulldowns, cable rows, curls, and more. It also supports resistance band training for even greater exercise variety.
What is the cable pulley ratio of the Nimitz N1?
The N1 features an interchangeable pulley system with both 1:1 and 2:1 cable ratios. Pull one cable to activate the 2:1 ratio for lighter resistance and longer cable travel, or pull both cables on the same side simultaneously to engage the 1:1 ratio for direct, heavier resistance.
What attachments are included for the Nimitz N1?
The Nimitz N1 comes with 11+ accessories, including J-Hooks, Safety Arms, Dip Bars, a Lat Bar, D-Handles, a Tricep Rope, Foot Plate, T-Bar, Short Bar, Landmine, and Resistance Band Pegs. You can also add optional accessories to expand your training options.
