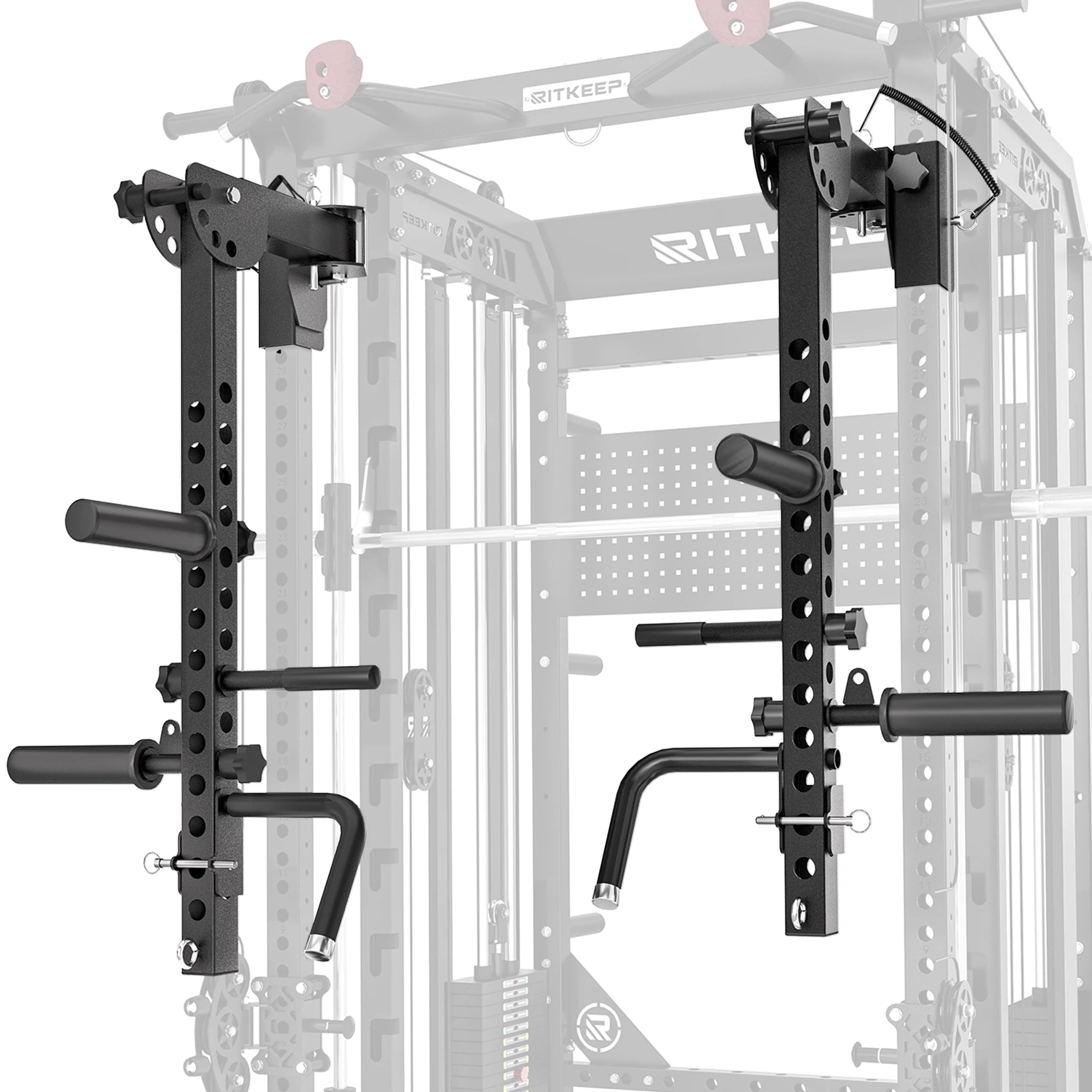

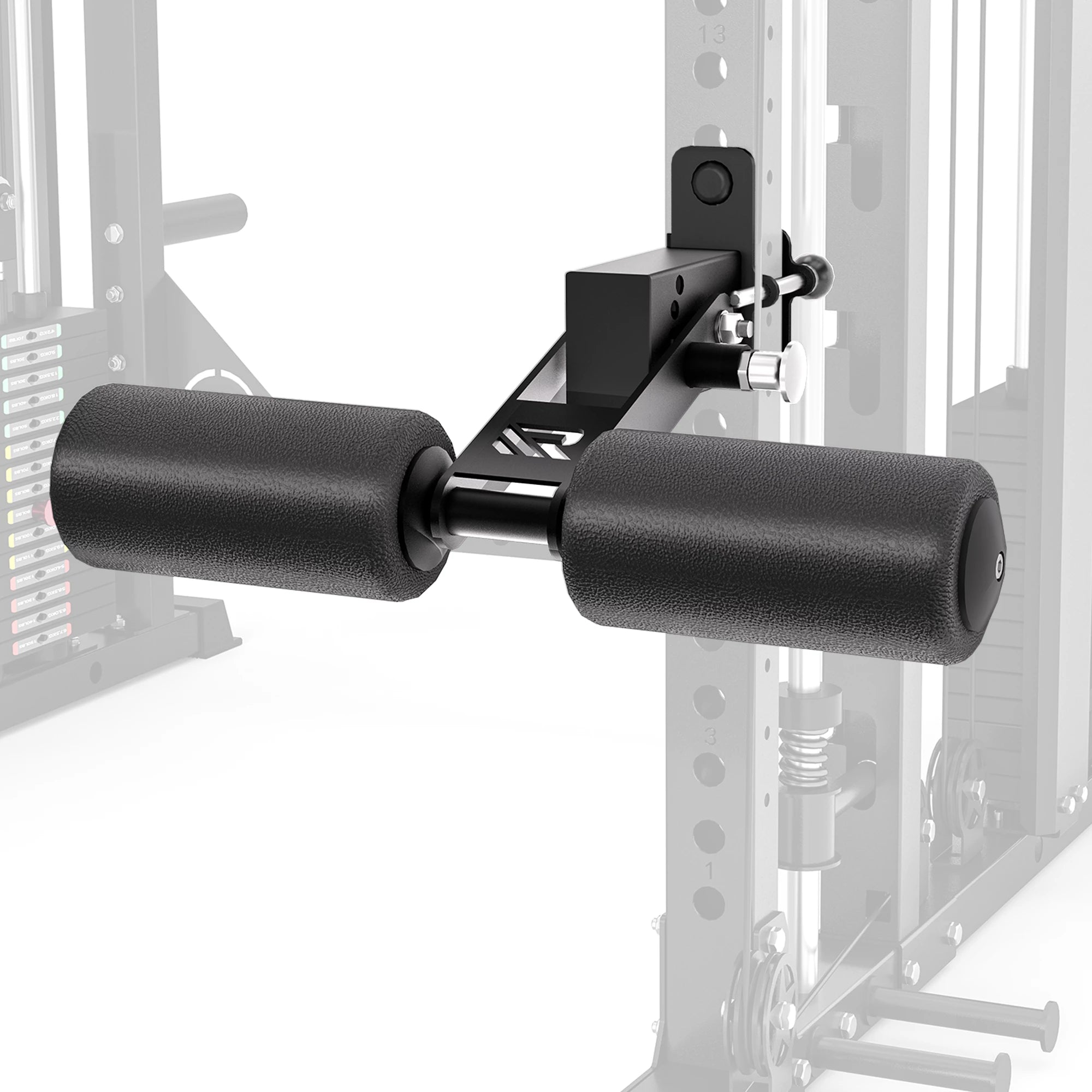

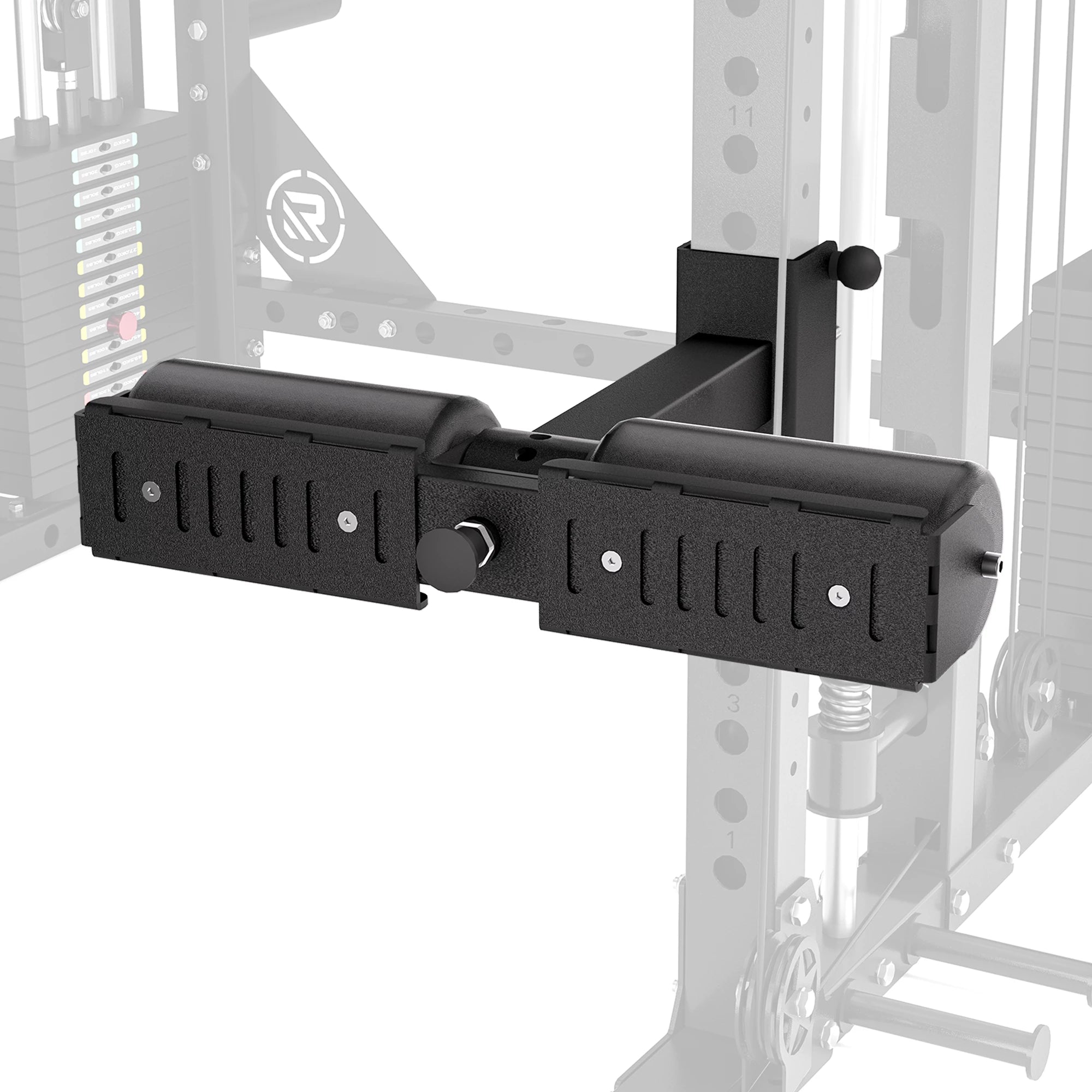

ACCESSORIES
DESCRIPTION
FULL-BODY & LEG STRENGTH PACKAGE INCLUDED
|

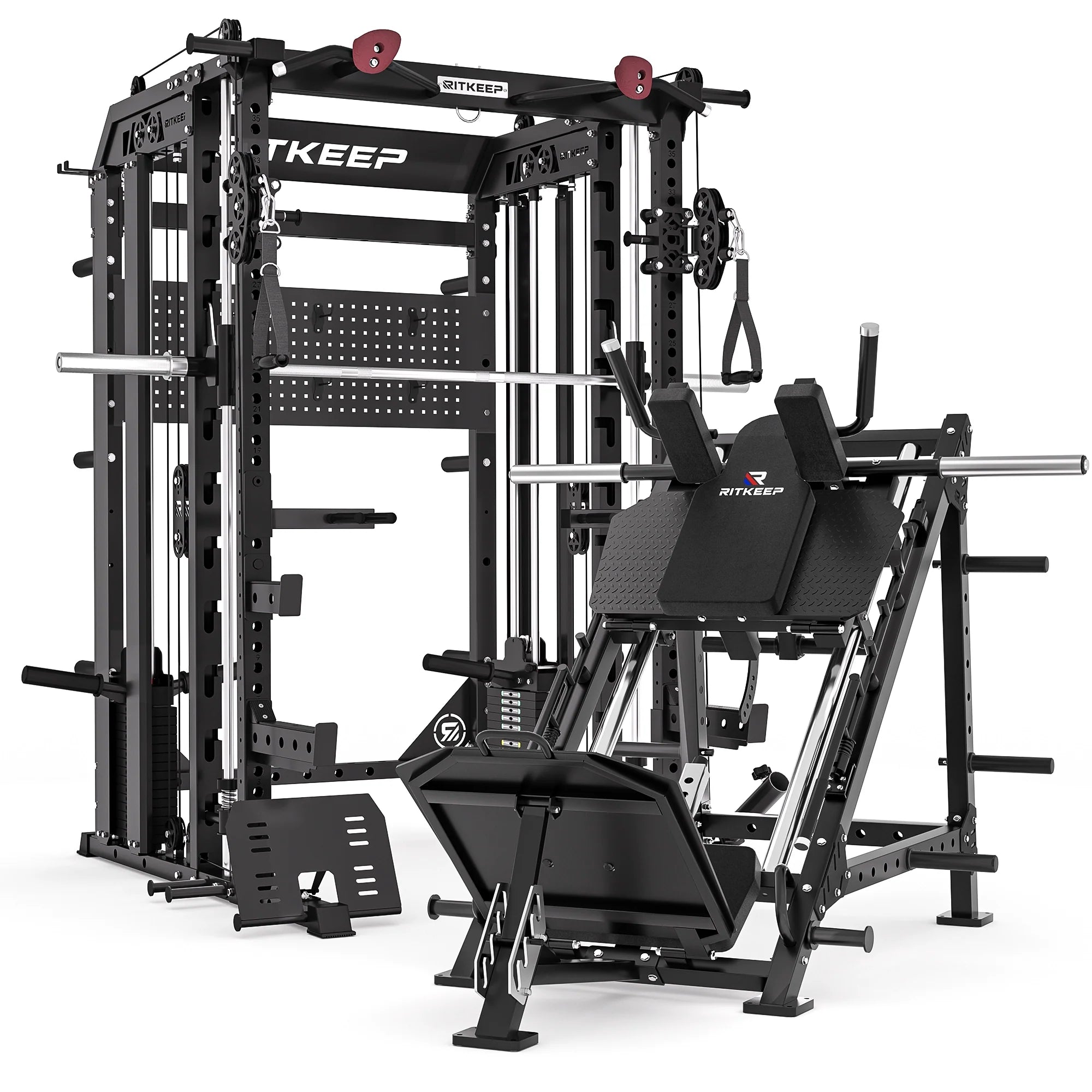

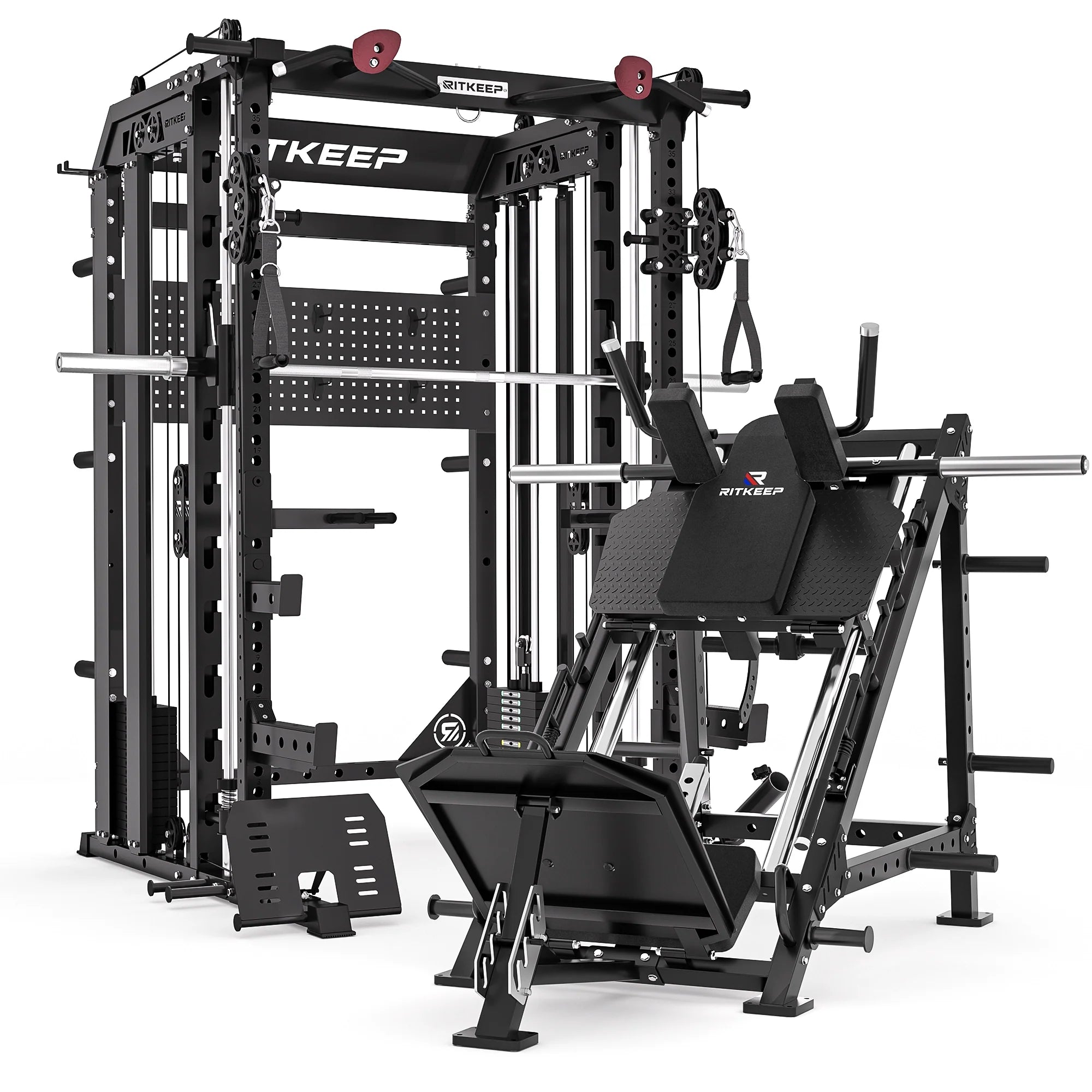

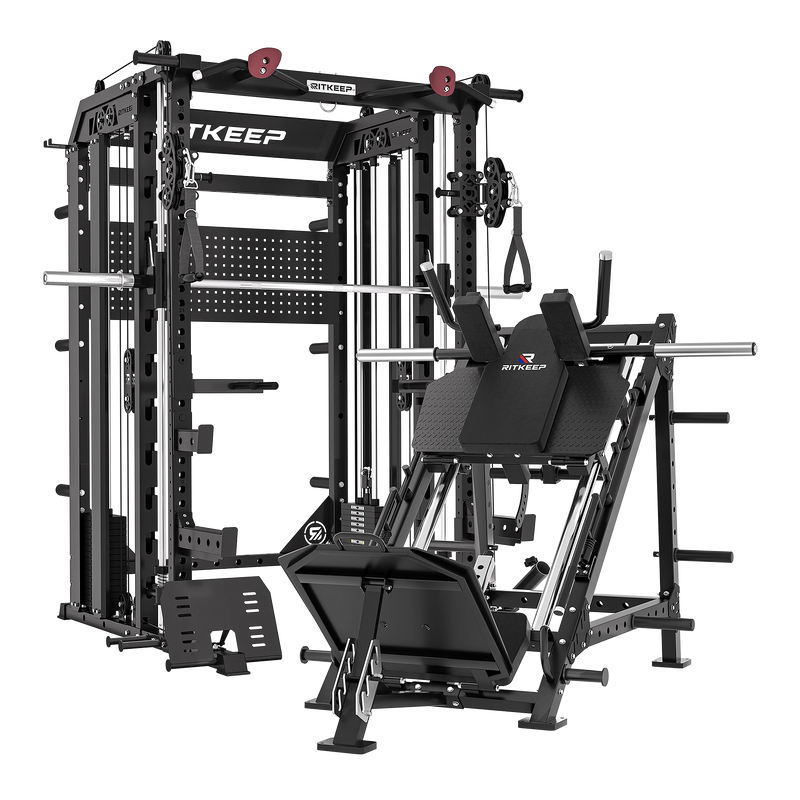

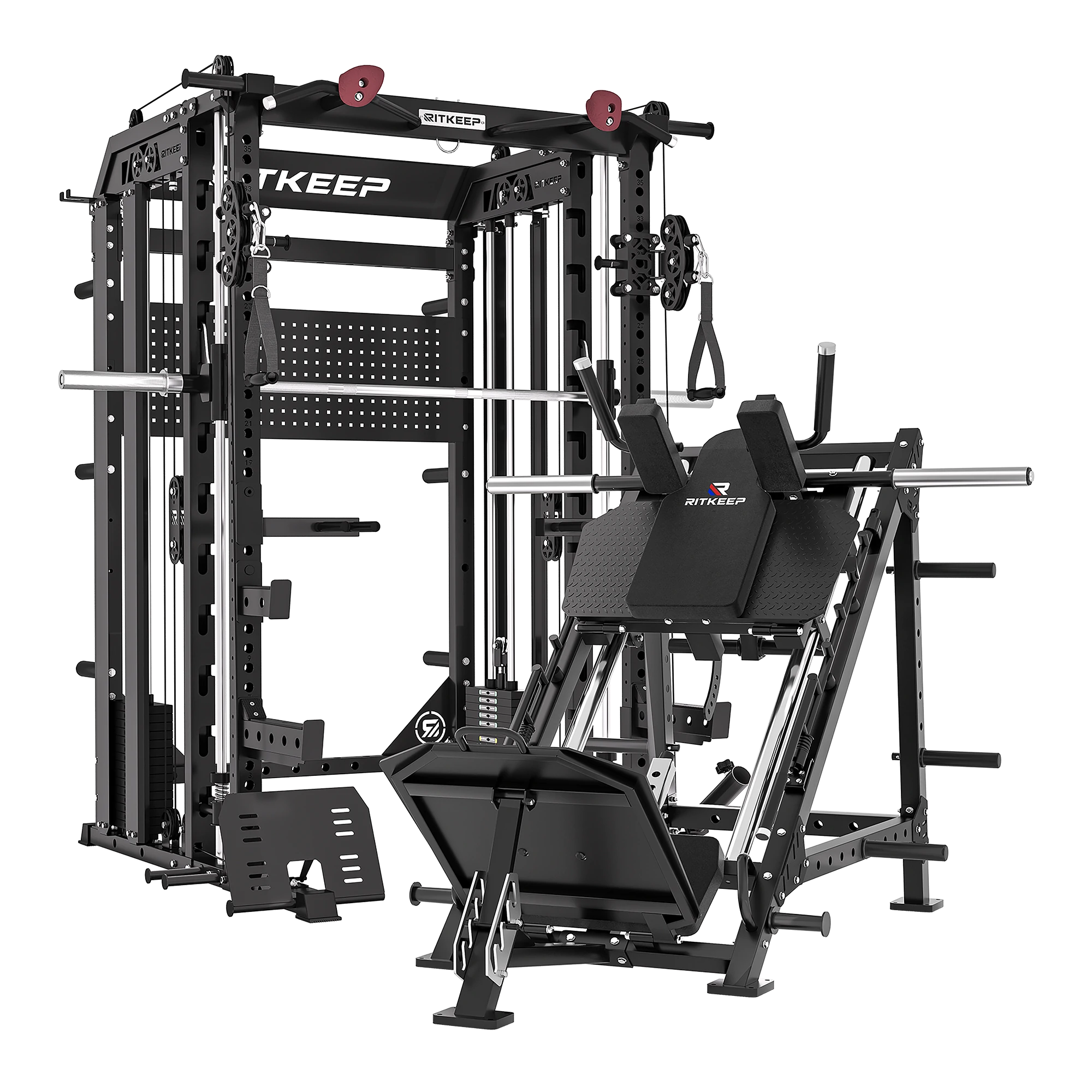

Take your training to the next level with this powerhouse combo — the RitKeep Nimitz N1 Smith Machine and the Thunderbolt A10 Leg Press Hack Squat Machine. This all-in-one home gym package is designed to give you a complete strength-building experience from head to toe. >>Nimitz N1 SMITH MACHINE
Nimitz N1 SPECS
>> THUNDERBOLT A10 LEG PRESS & HACK SQUAT MACHINE
THUNDERBOLT A10 SPECS
|
SPECIFICATION
Dimensions & Footprint
| Rack Weight | 327 kg |
| Rack Height | 214.5 cm |
| Rack Width (Including Smith Bar) | 202 cm |
| Rack Depth (Including Attachments) | 172 cm |
| Inside Width | 111 cm |
| Inside Depth | 152.7 cm |
| Smith Bar Weight | 15 kg |
| Smith Bar Length | 202 cm |
| Smith Bar Sleeve Length | 27.6 cm |
Cable Pulley
| Weight Stack | 2 × 70 kg Steel Stacks |
| Pulley Ratio | 1:1 & 2:1 |
| Pulleys | Nylon |
| Cable | 4-Layer Encased Steel |
| Cable Pulley Rotation | 200° |
| Cable Head Rotation | 360° |
| Vertical Adjustment | 31 Levels |
Max Load Capacity
| Machine | 1200 kg |
| Cable Pulley | 680 kg |
| J-Hooks | 720 kg |
| Safety Arms | 550 kg |
| Pull-Up Bar | 340 kg |
| Dip Station | 200 kg |
| Lat Pulldown Bar | 136 kg |
| Straight Bar | 136 kg |
| Landmine & T-Bar | 272 kg |
Frame
| Steel Type | 13-Gauge Steel |
| Square Tube | 50 mm × 70 mm |
| Metal Thickness | 2.5 mm |
| Coating | Powder Coated |
📖 N1 Smith Machine Installation Manual: Download
▶ N1 Installation Video: Watch
Dimensions & Footprint
| Machine Weight | 170 KG |
| Machine Width | 152cm (Including Weight Post) |
| Machine Depth | 233cm |
| Machine Height | 152cm |
| Lower Foot Plate Dimensions (W x L) | 70cm x 62cm |
| Upper Foot Plate Dimensions (W x L) | 76cm x 48cm |
| Lower Foot Plate Adjustable Positions | 4 (88°, 95°, 100°, 105°) |
| Upper Foot Plate Adjustable Positions | 6 (180°, 111°, 104°, 97°, 90°, 83° ) |
| Back Pad Dimensions (W x L) | 35cm x 75cm |
| Seat Pad Dimensions (W x L) | 52 cm x 30 cm |
| Shoulder Pad Dimensions (W x L) | 11cm x 33cm |
| Weight Post | 4 |
| Weight Post Length | 32cm |
| Storage Post | 6 |
| Storage Post Length | 20cm |
| Weight & Storage Post Diameger | 20mm & 50mm |
Weight Capacity
| Overall Capacity | 1000 KG |
| Sled Weight | 22.7 KG |
| Weight Loading Capacity | 450 KG (4 Holders) |
| Weight Storage Capacity | 550 KG (6 Holders) |
| User Weight | 120 KG |
Meterial
| Finish | Powder-Coated |
| Frame Material | Steel |
| Steel Type | 14 Gauge |
| Square Tube | 50mm x 70mm |
| Slide Mechanism | Nylon Roller |
📖 Thunderbolt A10 Installation Manual: Download
▶️ Thunderbolt A10 Installation video: Watch
SHIPPING & RETURNS
Shipping Time
Orders will be processed and shipped within 3-5 working days. The delivery timeframe would be 5-7 days.
We cannot guarantee delivery time under special circumstances, such as natural disasters, government actions, social anomalies, etc. If there are special circumstances, we will inform you by email.
*Things to note:
- Delivery days do not include the date of dispatch (i.e. Dispatch to ACT on Monday, count 5-7 days from Tuesday)
- Metropolitan areas may have quicker delivery times
- Orders cannot be delivered to P.O. Boxes / Parcel Lockers
- Contact number is required for all deliveries (preferably mobile number)
Shipping Fee
- We provide a Standard Delivery option at a fee of AU$10.99.
- Shipping Fees Calculated at checkout – Shipped from Sydney.
*Please note: If there is a delay in logistics, please contact us in time by email: service@ritkeep.au, please include your order number in the email.
Ships Within 3-4 Days
Once shipped, it is expected to arrive within 5-7 working days. Shipping calculated at checkout.
Dispatch in batches.
We will dispatch your items immediately when they become available, so you may get several shipments from us. You only pay for shipping once and there are no additional charges.
Collections
You can pick up your order directly from our Sydney warehouse. Please contact our Service Team service@ritkeep.au for more details.
Customs, Duties, and Taxes
RitKeep includes the customs and taxes applied to your order.
Undeliverable Packages
In case a package delivery is unsuccessful due to incorrect address information or other factors, we will make every effort to contact you and resolve the situation. Please note that there may be additional shipping fees for reshipment.
How To Track Your Order
You will receive an email with a tracking number to track your order once your order has shipped. You can use the link we sent to monitor your shipment's status and estimated delivery date.
*Please allow up to 48 hours for the tracking portal to update.
SMART DESIGN, SMART CHOICE

Designed with five grip options, this multi-grip pull-up bar allows you to target your back, arms, and core from different angles. It also includes dual rock-climbing-style grips, enhancing finger and forearm strength while improving grip endurance and overall training variety.

This design stores the Smith bar at its highest position within the frame, completely clearing your training area to maximize both your space and workout efficiency. Never duck around the bar again during pull-ups, dips, or free-weight exercises,

The crossover system features 31 adjustable levels and both 1:1 and 2:1 pulley ratios, giving you total control over resistance and training intensity. The height now reaches 183cm, offering a greater range of motion for taller users and overhead movements.

The integrated resistance band system adds dynamic tension to both free-weight and Smith training. Attach bands at the base for squats, presses, and rows, or use the side pegs to assist pull-ups with controlled support.

The new adjustable footplate offers 3 angles for varied training styles. Its wide design ensures comfort and ideal positioning for all users. When not in use, folds flat to save space and keep your gym organized.

Built with 33 adjustment levels and precise 50 MM hole spacing, the frame delivers all the strength and versatility you need. The upgraded 13-gauge steel front uprights enhance overall stability and load capacity, allowing you to lift heavier with total confidence.
