DESCRIPTION
FULL-BODY & LEG STRENGTH PACKAGE INCLUDED
|

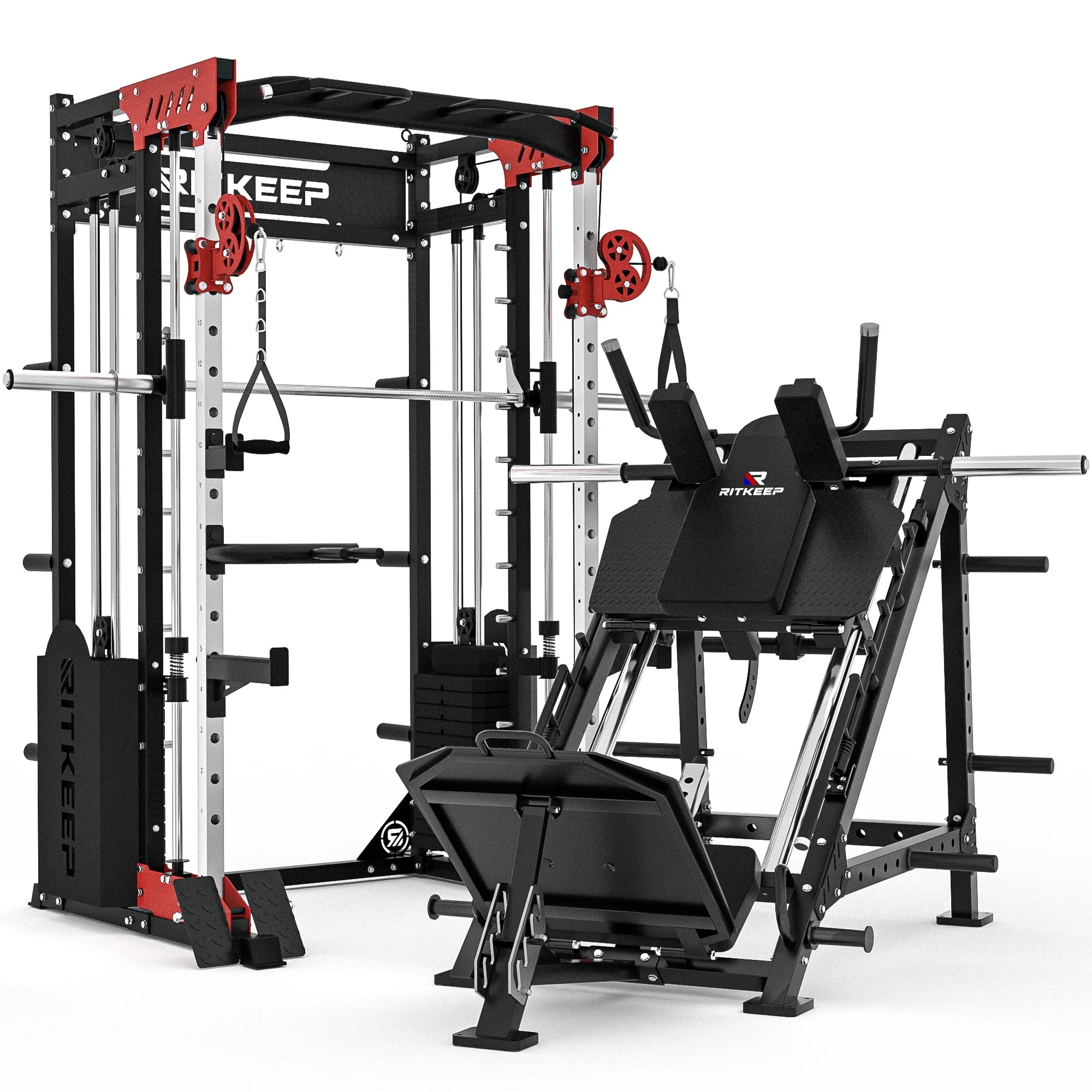

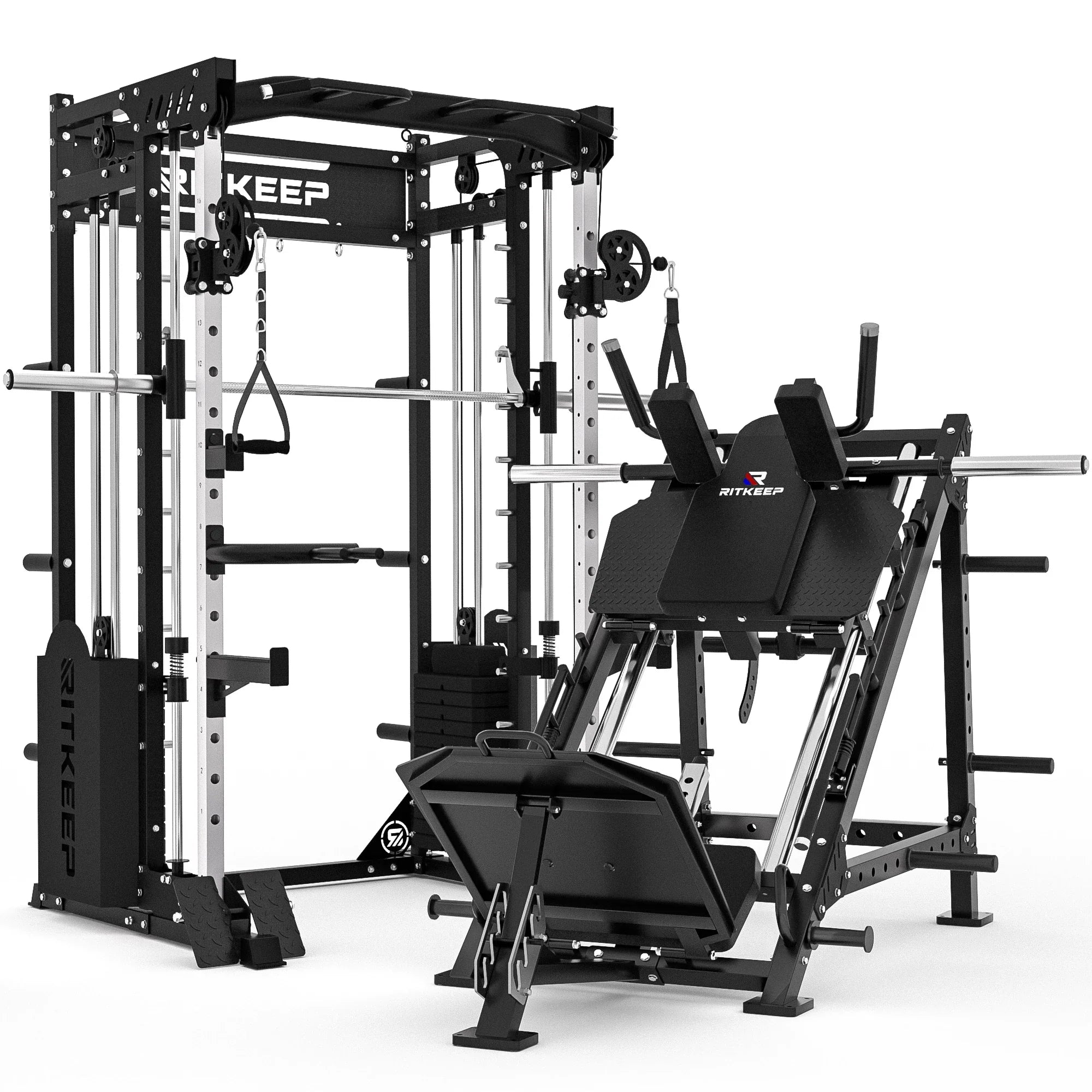

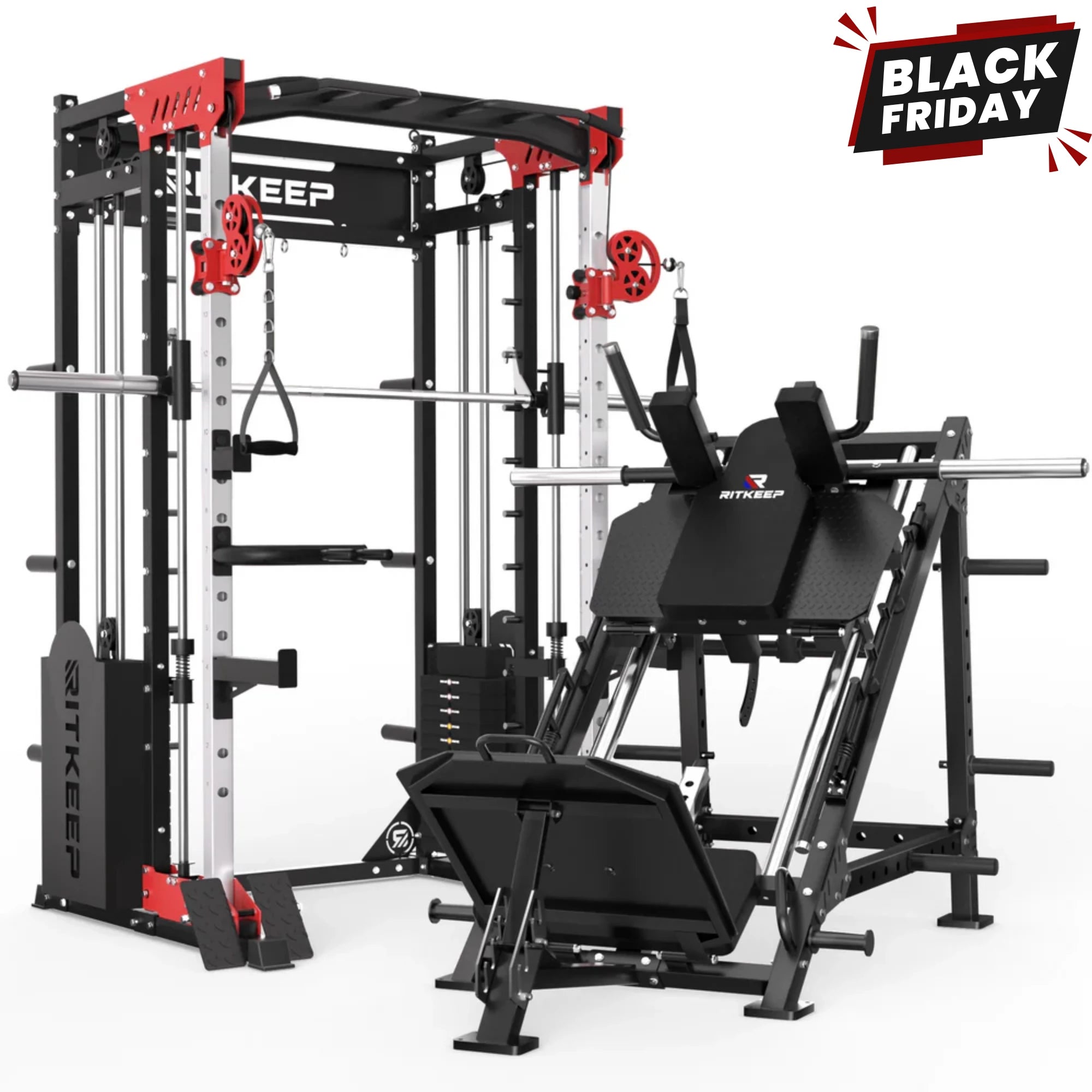

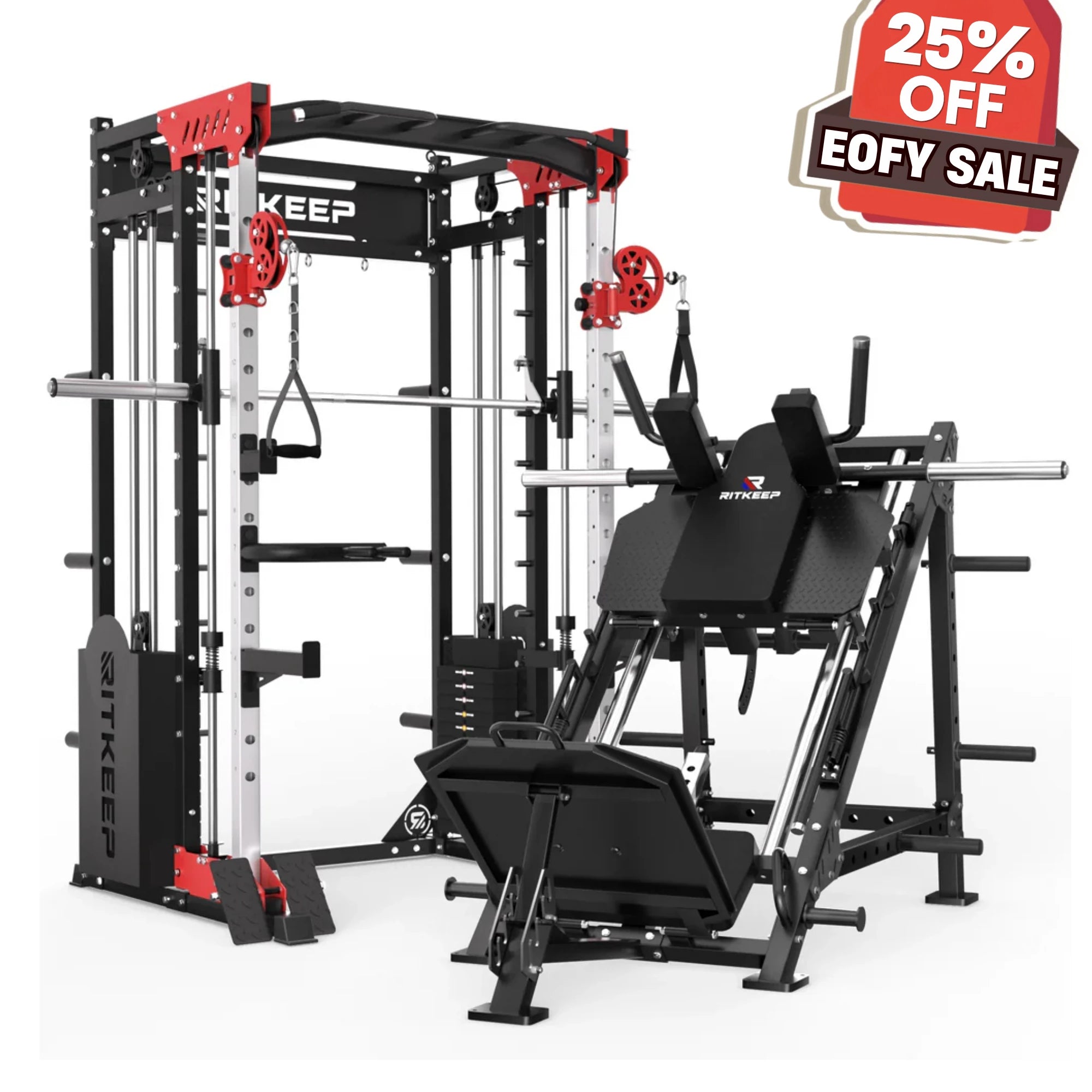

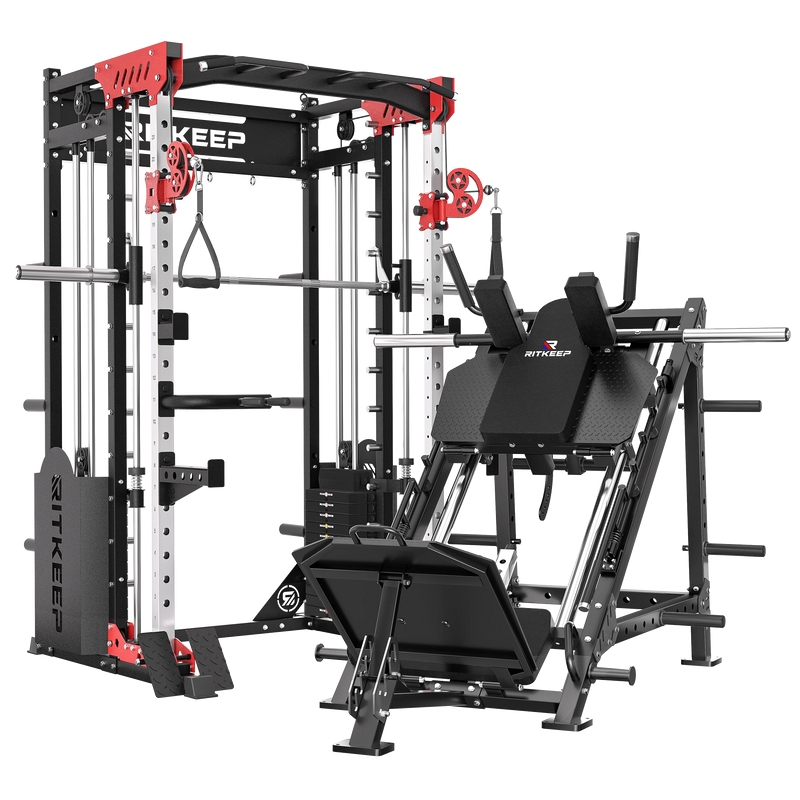

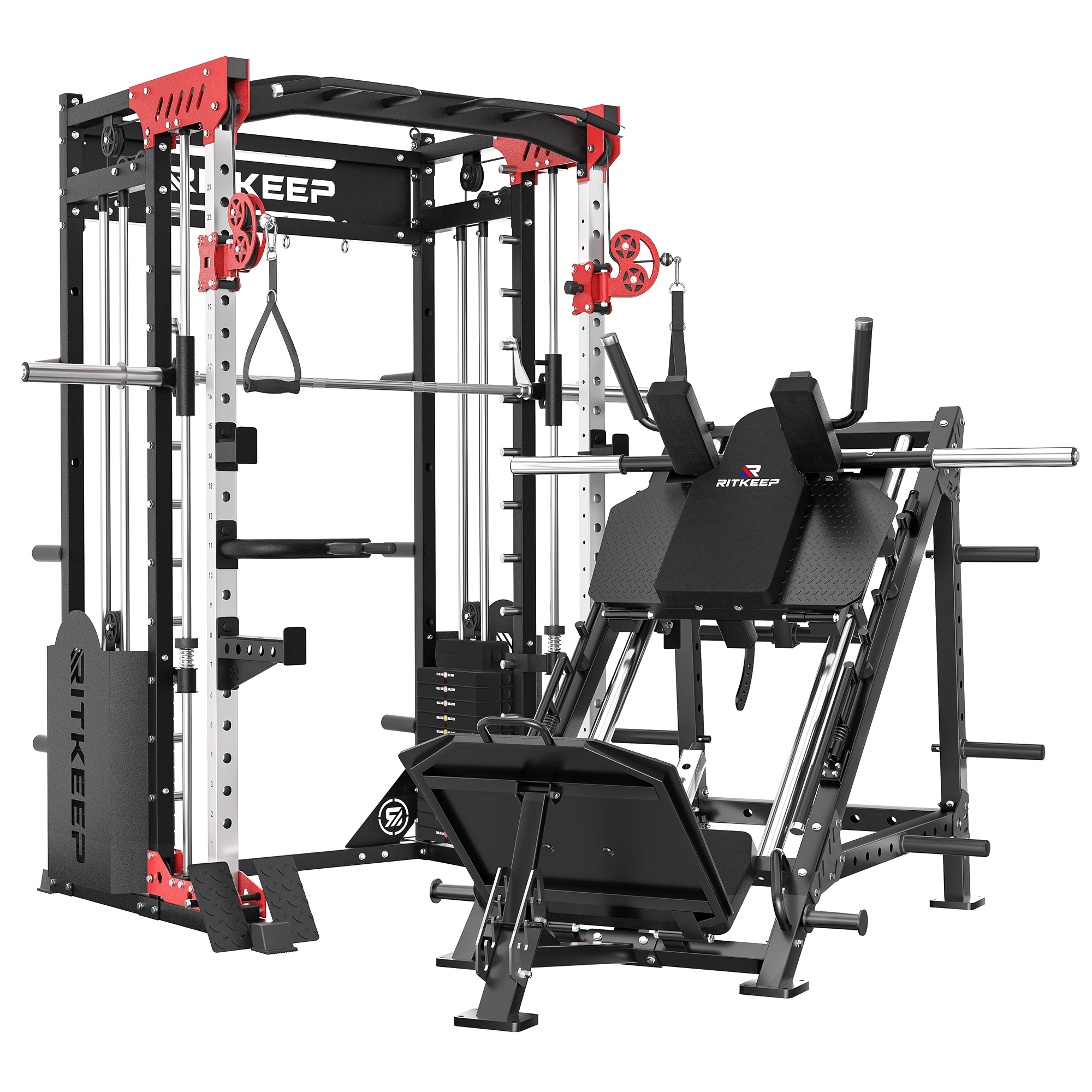

Take your training to the next level with this powerhouse combo — the RitKeep PMAX-5600 Smith Machine and the Thunderbolt A10 Leg Press Hack Squat Machine. This all-in-one home gym package is designed to give you a complete strength-building experience from head to toe. >>PMAX 5600 SMITH EXERCISE MACHINE
PMAX 5600 SPECS
>> THUNDERBOLT A10 LEG PRESS & HACK SQUAT MACHINE
THUNDERBOLT A10 SPECS
|
SPECIFICATION
PMAX 5600 Dimensions & Footprint
| Rack Weight | 295 kg |
| Rack Height | 219 cm (Allow at least 15 cm of overhead clearance for pull-ups) |
| Rack Width (Including Smith Bar) | 202 cm (Allow 50 cm of side clearance to load plates comfortably) |
| Rack Depth (Including Attachments) | 151 cm |
| Inside Width | 110 cm |
| Inside Depth | 120 cm |
| Smith Bar Weight | 15 kg |
| Smith Bar Length | 203 cm |
| Smith Bar Sleeve Length | 29 cm |
Cable Pulley
| Weight Stack | 150 kg (Standard) / 190 kg (Upgrade) |
| Pulley Ratio | 2:1 |
| Pulley Material | Plastic |
| Cable Construction | 4-Layer Encased Steel |
| Cable Pulley Rotation | 200° |
| Cable Head Rotation | 360° |
| Vertical Adjustment | 23 Levels |
Max Load Capacity
| Machine | 1,000 kg |
| Cable | 680 kg |
| J-Hooks | 680 kg |
| Safety Spotter Arms | 450 kg |
| Pull-Up Bar | 220 kg |
| Dip Station | 160 kg |
| Lat Pulldown Bar | 150 kg |
| Straight Bar | 120 kg |
| Landmine & T-Bar | 270 kg |
Frame
| Steel Type | 14-Gauge Alloy Steel |
| Square Tube | 50 × 50 mm |
| Metal Thickness | 2 mm |
| Coating | Powder-Coated |

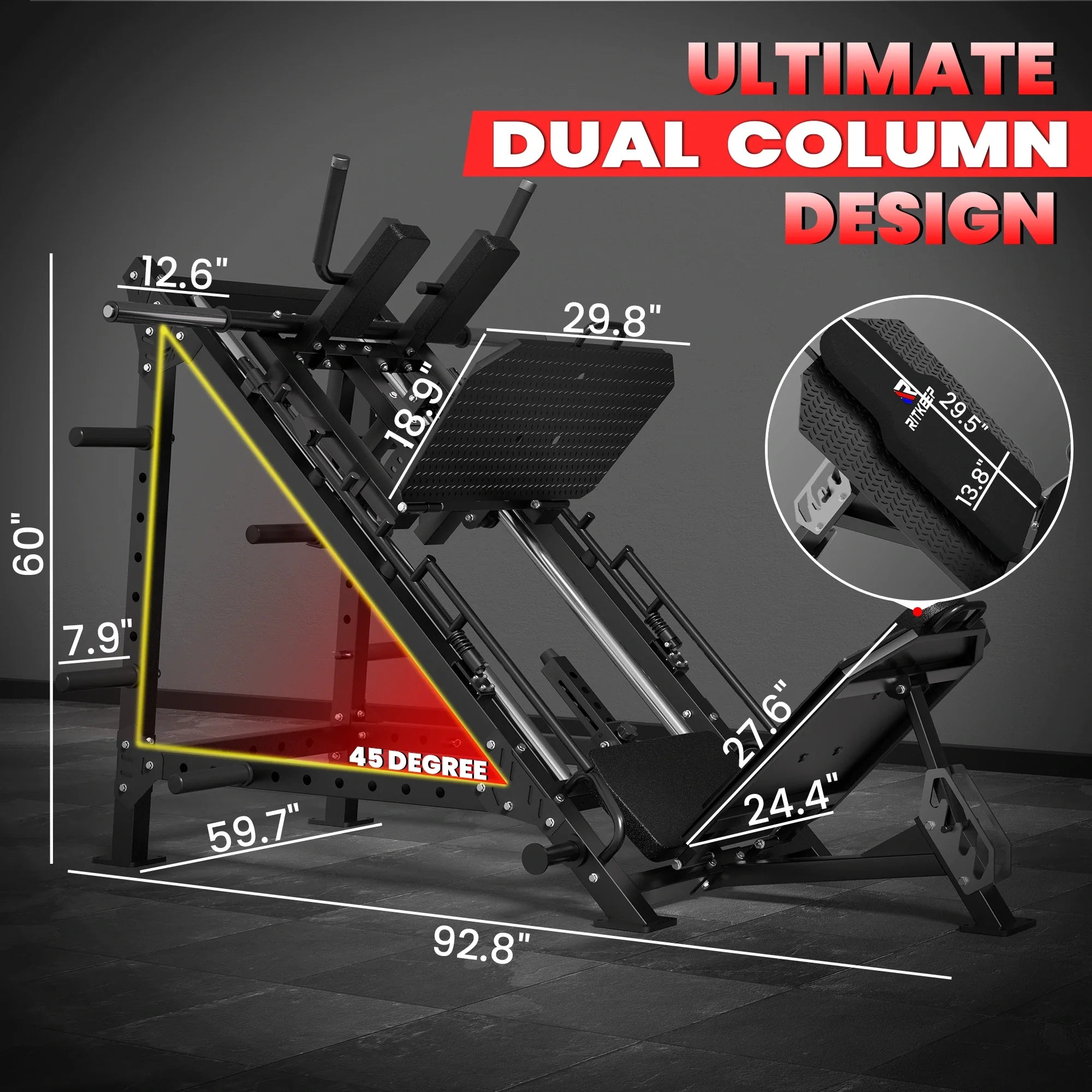

A10 Dimensions & Footprint
| Machine Weight | 170 kg |
| Machine Width | 152 cm (Including Weight Posts) |
| Machine Depth | 233 cm |
| Machine Height | 152 cm |

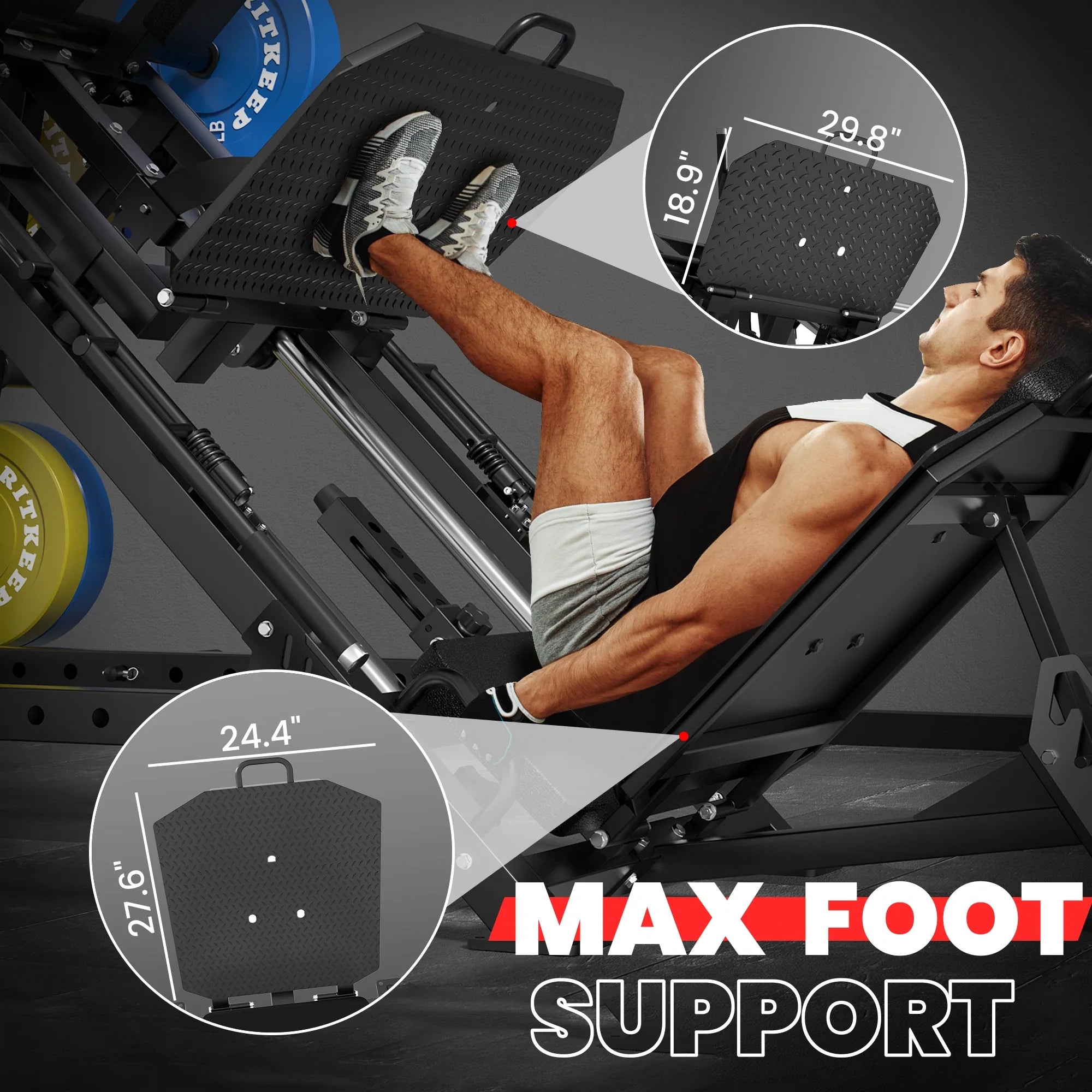

| Lower Footplate Dimensions (W × L) | 70 × 62 cm |
| Upper Footplate Dimensions (W × L) | 76 × 48 cm |
| Lower Footplate Adjustable Positions | 4 (88°, 95°, 100°, 105°) |
| Upper Footplate Adjustable Positions | 6 (180°, 111°, 104°, 97°, 90°, 83°) |
| Back Pad Dimensions (W × L) | 35 × 75 cm |
| Seat Pad Dimensions (W × L) | 52 × 30 cm |
| Shoulder Pad Dimensions (W × L) | 11 × 33 cm |
| Weight Posts | 4 |
| Weight Post Length | 32 cm |
| Storage Posts | 6 |
| Storage Post Length | 20 cm |
| Weight & Storage Post Diameter | 26 mm & 50 mm |

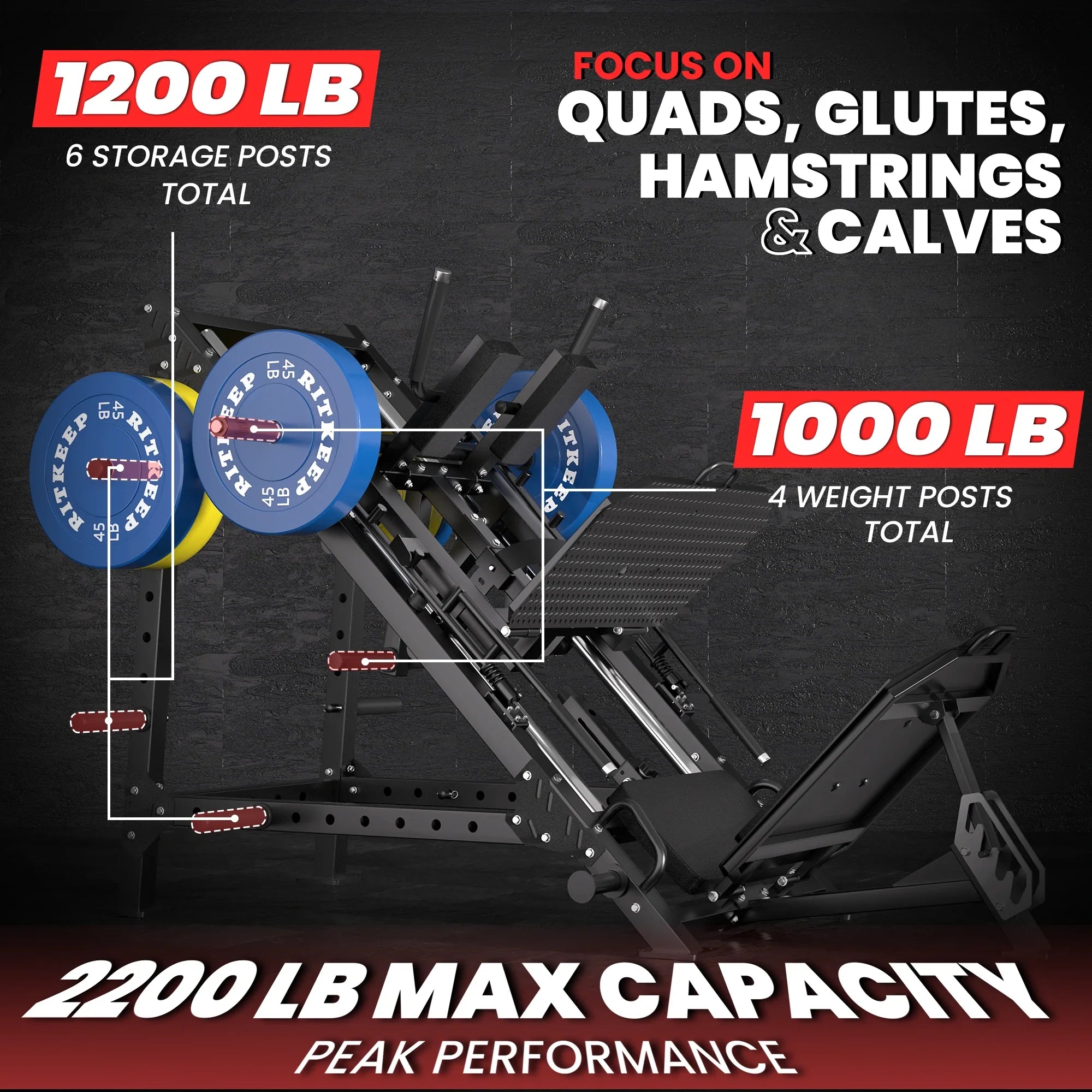

Weight Capacity
| Overall Capacity | 1,000 kg |
| Sled Weight | 22.7 kg |
| Weight Loading Capacity | 450 kg (4 Posts) |
| Weight Storage Capacity | 550 kg (6 Posts) |
| Maximum User Weight | 120 kg |
Material
| Finish | Powder-Coated |
| Frame Material | Steel |
| Steel Type | 14-Gauge Steel |
| Square Tube | 50 × 70 mm |

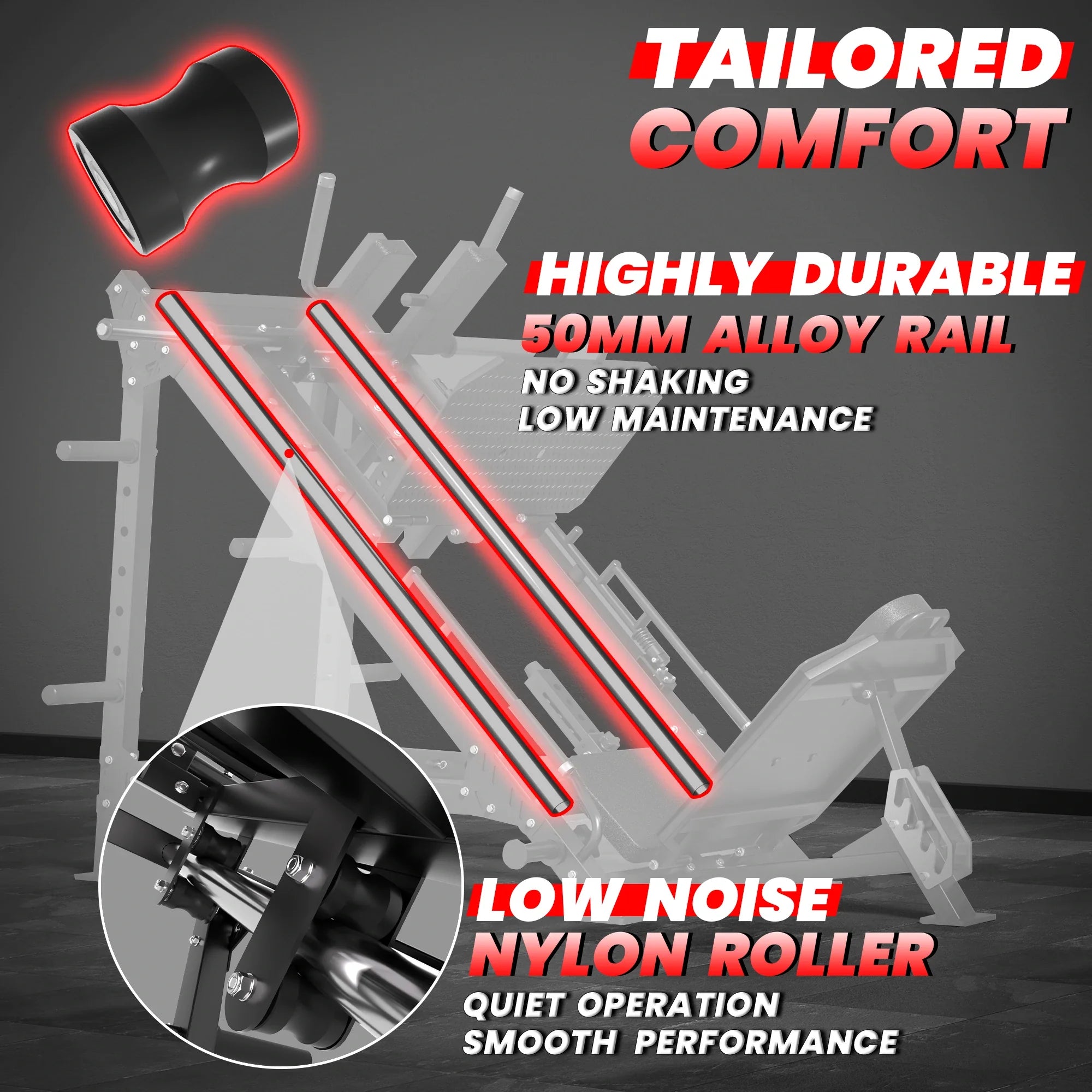

| Slide Mechanism | Nylon Roller |

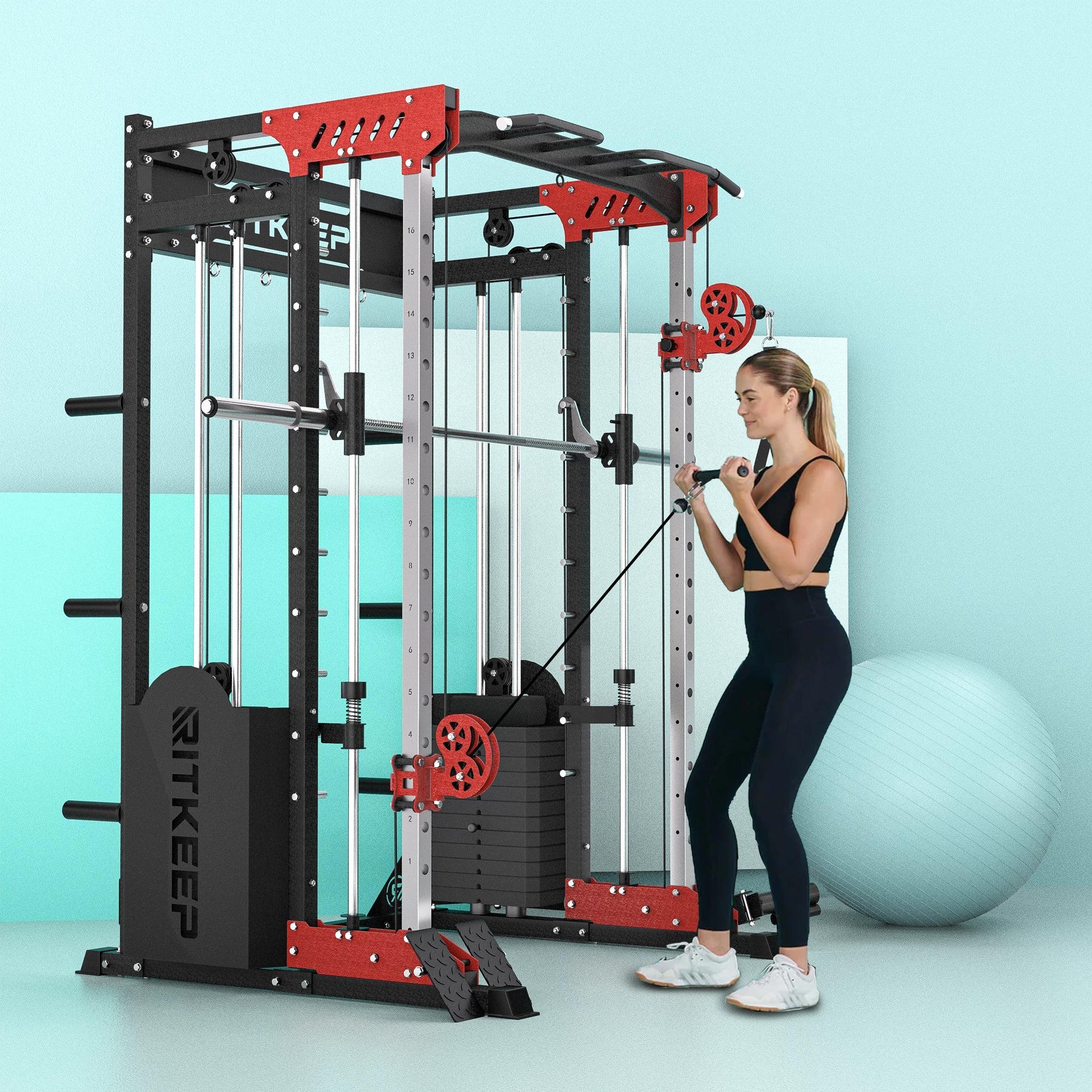

Lift Confidently. Move Seamlessly.
The PMAX-5600 Smith System features a solid-steel guide rail paired with professional linear bearings, delivering frictionless, track-straight motion rep after rep. The fully chromed 28mm Olympic bar offers a premium grip feel and competition-ready performance, enhancing both aesthetics and durability.
For added protection, the system is equipped with multi-point safety catch hooks and a shock-absorbing spring system that automatically engages during failed reps, giving you full confidence to lift heavy without a spotter. With 12 height-adjustable positions, the system adapts to any movement pattern, from deep squats to incline presses.

Built-In Weights. Built for Performance.
PMAX-5600’s dual 150 KG weight stacks are seamlessly built into its independent crossover system—no plates, no setup, just smooth precision. The 2:1 pulley ratio ensures ultra-controlled movement across the full range of cable exercises.
16 fine-tuned height positions allow exact targeting, from high-core rotations to low cable rows. Whether you’re dialing in micro-weight changes or adjusting your angle, every rep stays fluid and focused.
Train solo with no compromise, or open it up to two partners. With three-user capacity and built-in weight stack convenience, you get uninterrupted sessions, no waiting, no clutter.

Effortless Transition Between Training Modes

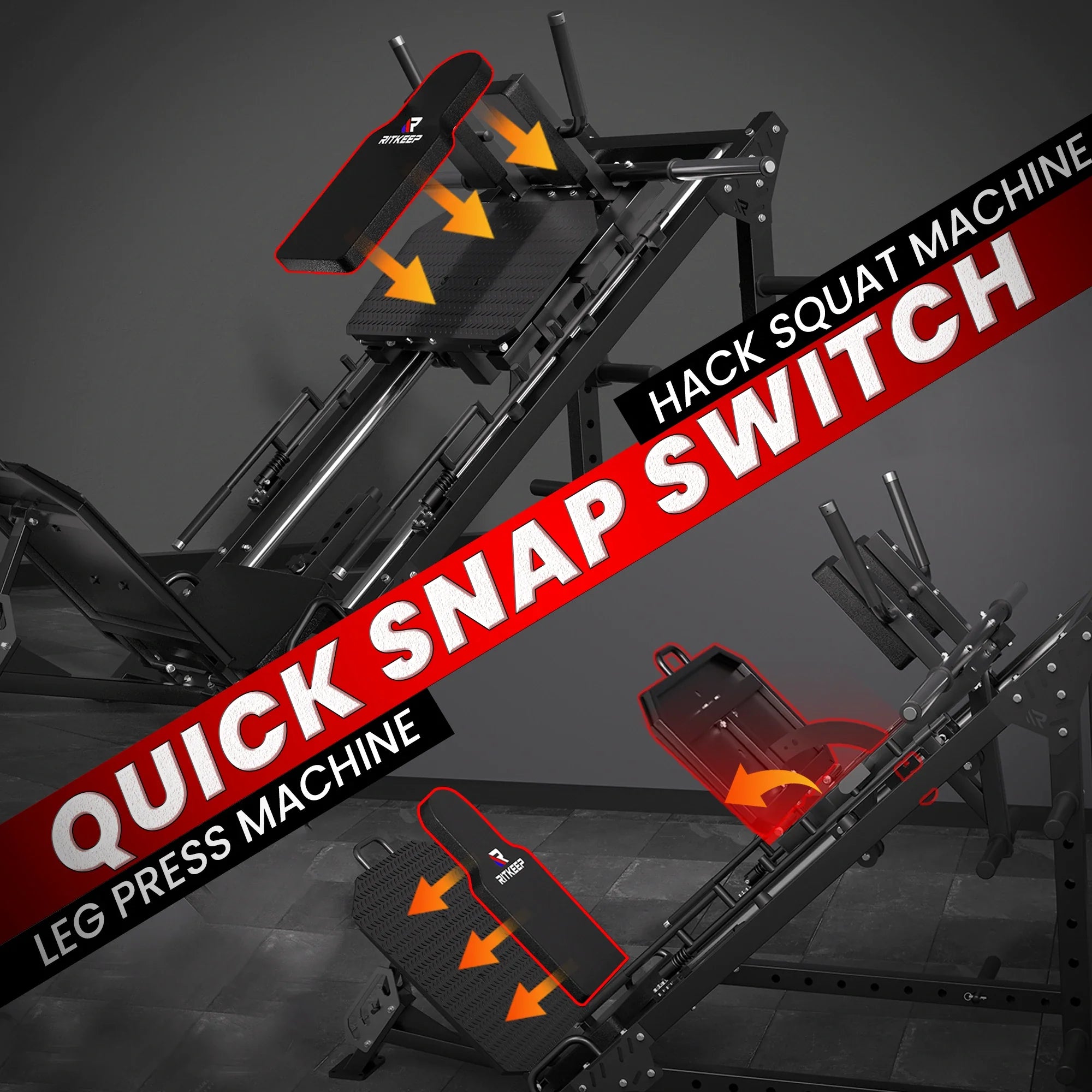

Designed with comfortable, anti-slip padding, this leg press machine lets you switch between two workout setups in seconds. Simply flip the back pad and adjust the diamond-plated foot plates with a quick pull of the pop-pin to move seamlessly between leg presses and hack squats. This versatile machine engages your quads, hamstrings, glutes, and calves, all while minimizing strain on your lower back—delivering a safe, efficient, and smooth workout experience.

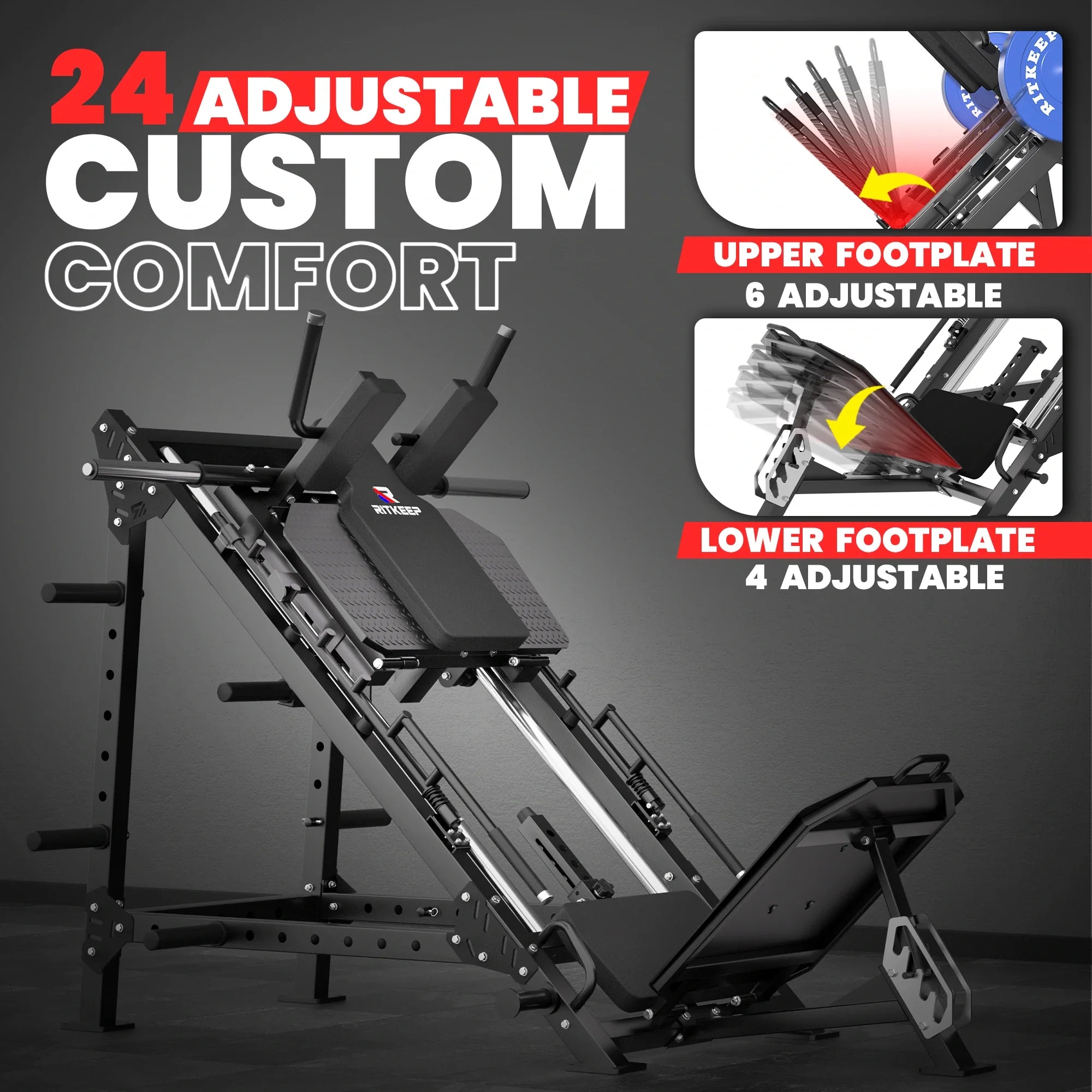

24 Adjustable Angles for Customized Comfort
The foot pedals are designed with multiple adjustable angles to ensure a personalized and ergonomic workout experience. The hack squat pedal offers four adjustable angles, while the leg press pedal provides six, allowing for precise adjustments that enhance comfort, balance, and performance during every session.
Frequently Asked Questions
Can the PMAX 5600 weight stack be upgraded with additional weight?
Yes. The weight stack can be upgraded to 190 kg (95 kg per side). For more resistance, the optional Weight Stack Plate Holders add up to 110 kg capacity (55 kg per side).
What exercises does the PMAX 5600 target?
The PMAX 5600 supports full-body strength training, including squats, deadlifts, bench presses, shoulder presses, hip thrusts, lat pulldowns, cable rows, curls, and more. You can also add resistance bands for even more training options.
Can the PMAX 5600 be customized with different attachments?

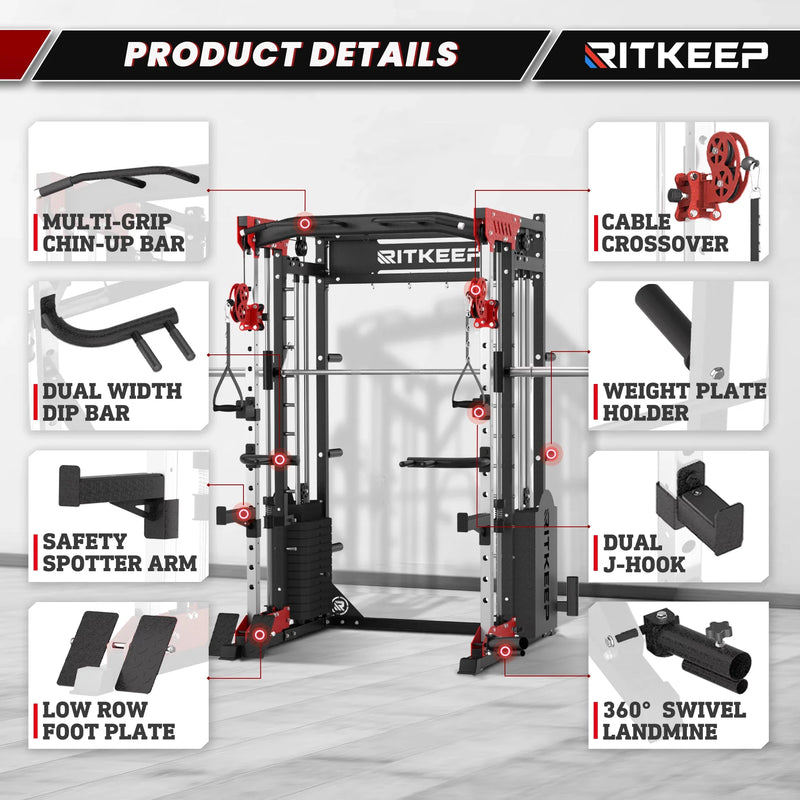

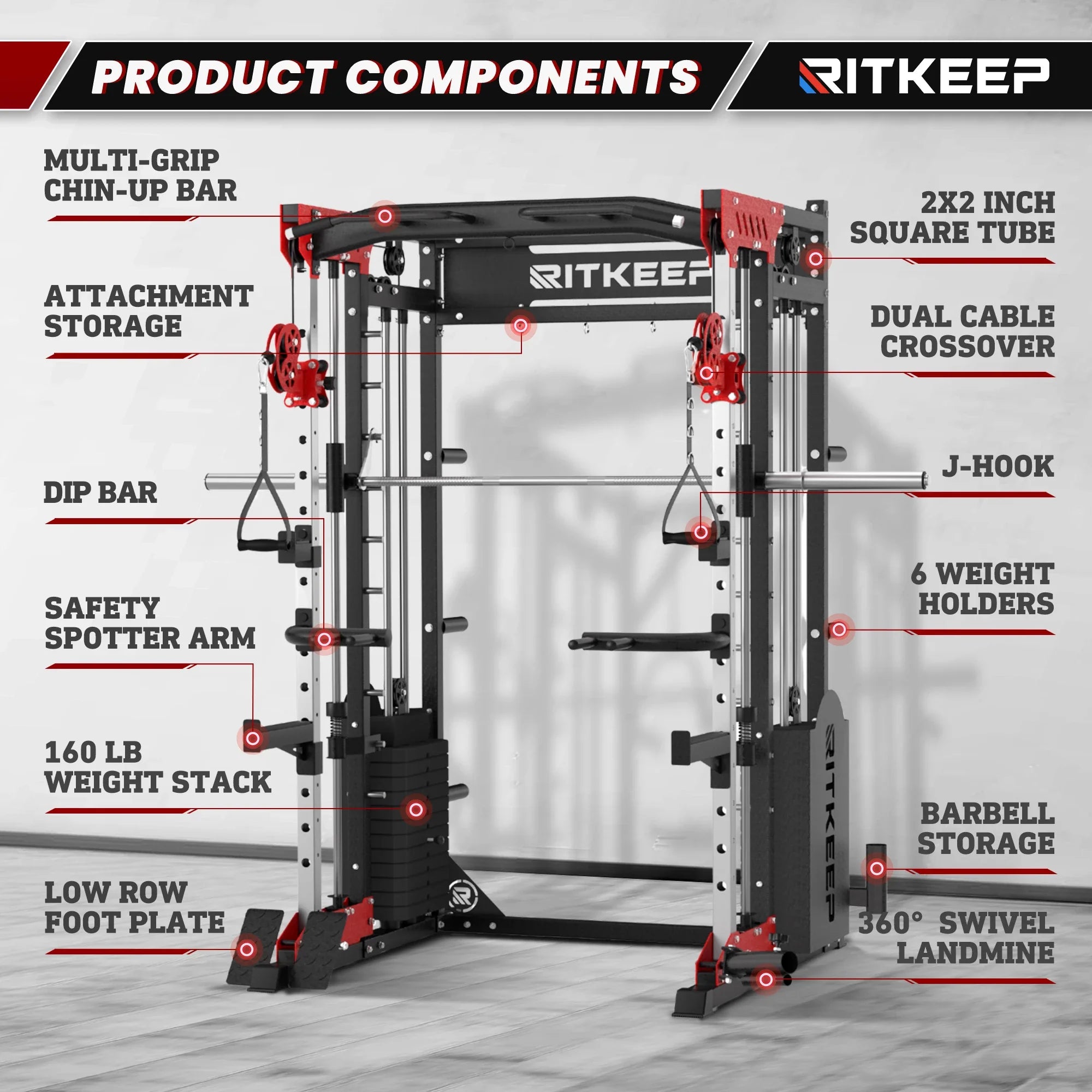

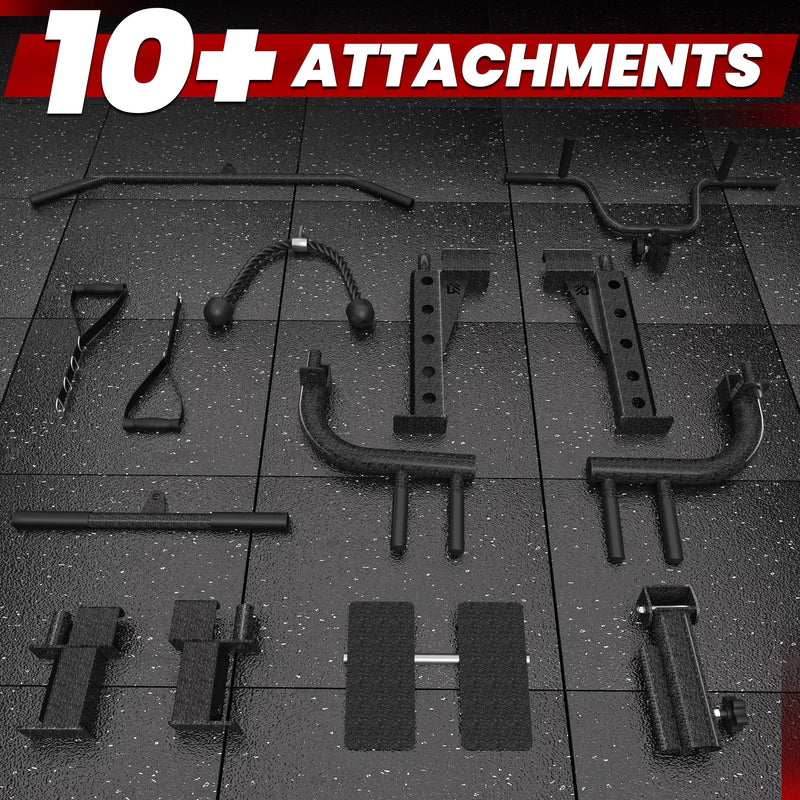

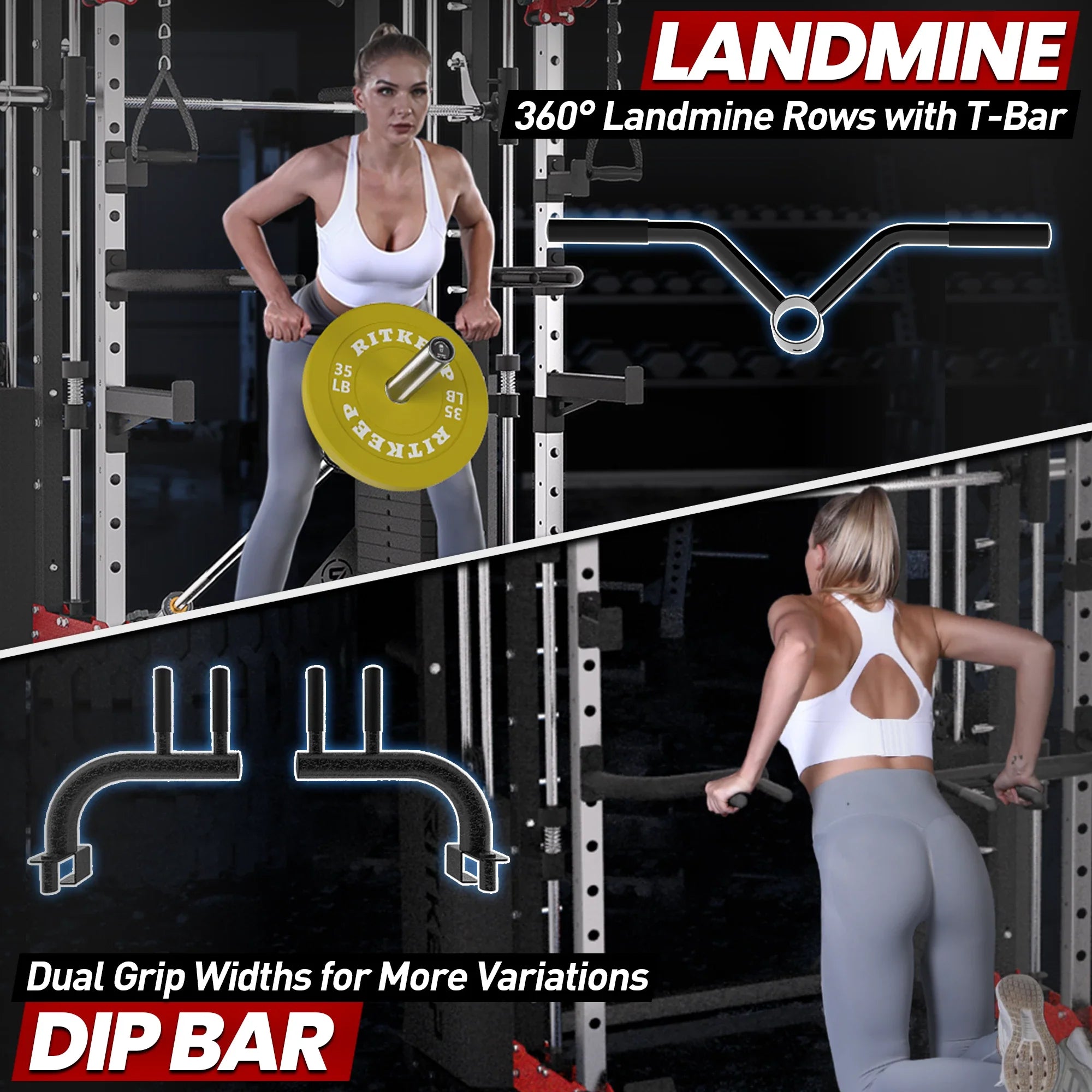

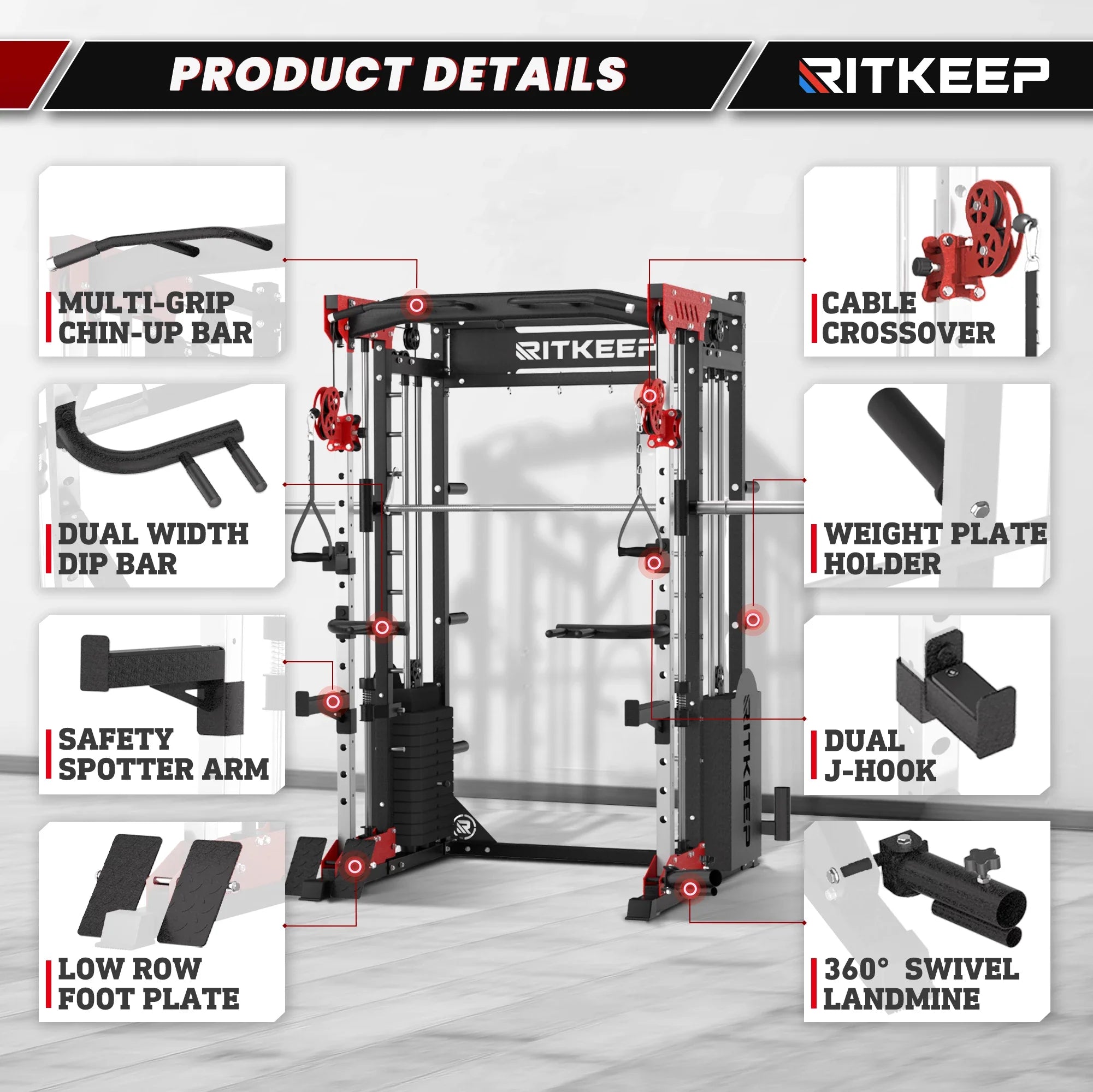

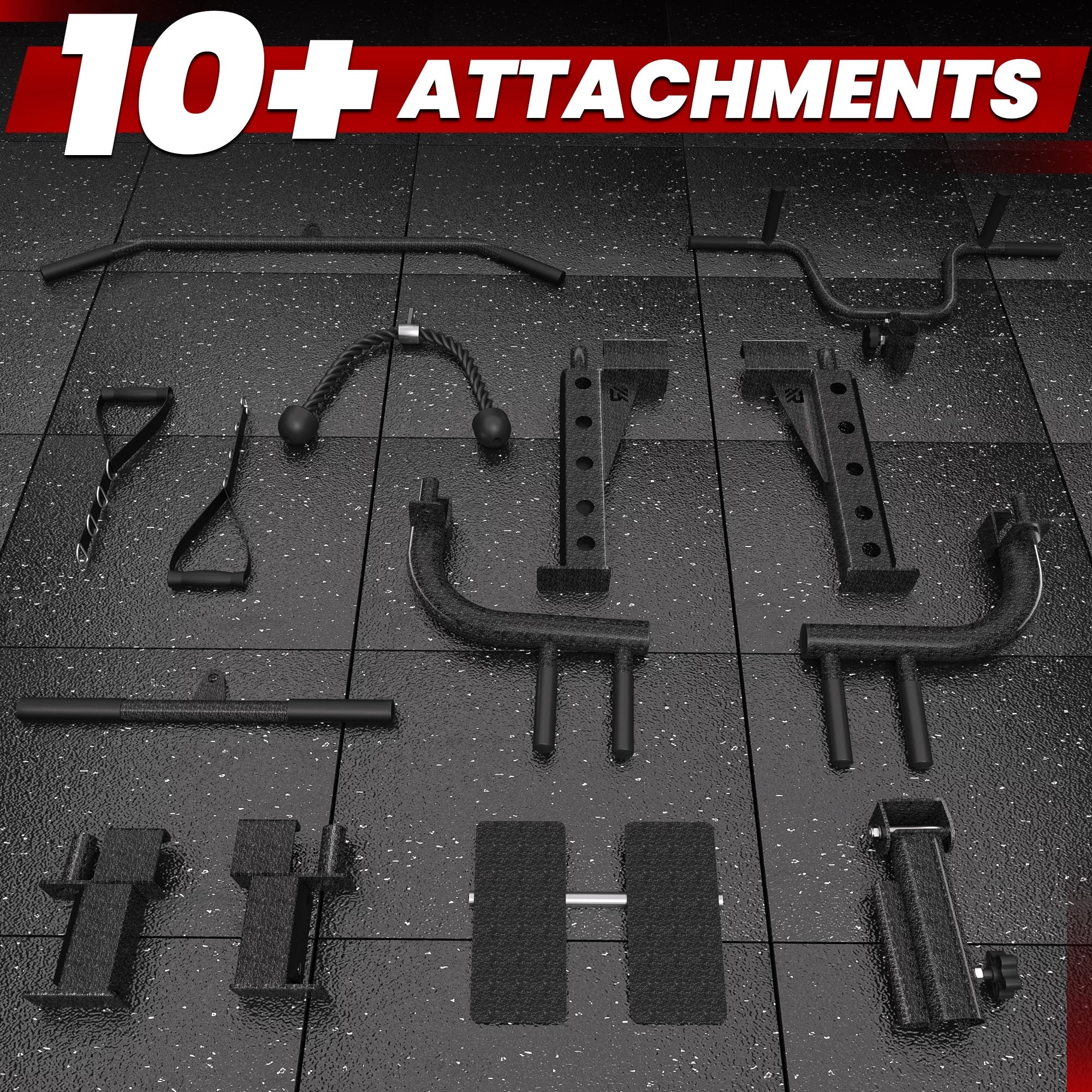

Yes. The PMAX 5600 comes with 10+ attachments, including J-Hooks, Safety Arms, Dip Bars, a Lat Bar, D-Handles, a Tricep Rope, Foot Plate, T-Bar, Short Bar, and Landmine. It is also compatible with optional accessories such as Jammer Arms, a Leg Holder, Multi-Functional Handles, Leg Press Board, and more.
What training systems are integrated into the PMAX 5600?
The PMAX 5600 combines 6 training systems: power rack, crossover system, Smith machine, chin-up station, dip station, and low row station.
What is the cable pulley ratio of the PMAX 5600?
The PMAX 5600 features a 2:1 cable pulley ratio, meaning 45 kg on the weight stack provides 22.5 kg of resistance. This ratio also provides longer cable travel and allows for smaller, more precise resistance adjustments.
Does the PMAX 5600 need to be bolted to the floor?
No. The PMAX 5600 does not require floor mounting. Its reinforced dual rear crossbars and dual diagonal support bars provide a stable base for heavy lifting, helping prevent sliding or tipping during intense workouts.
